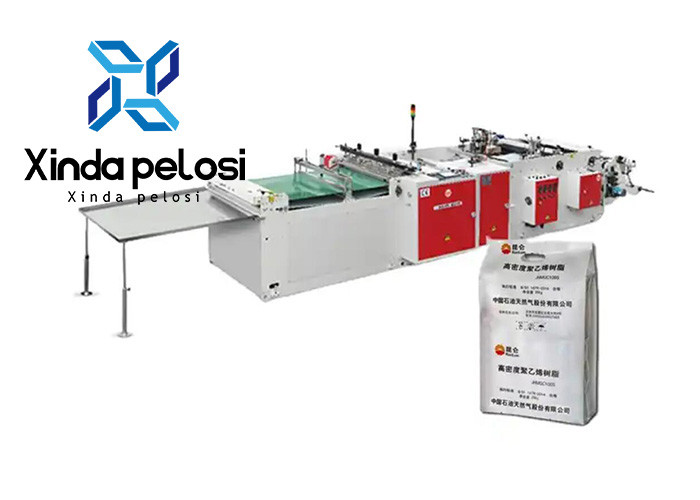

Plastic Sealer Huge Heavy Duty Bag Making Machine With Flying Knife 50m/Min

  • Plastic Sealer Huge Heavy Duty Bag Making Machine With Flying Knife 50m/Min
  • Plastic Sealer Huge Heavy Duty Bag Making Machine With Flying Knife 50m/Min
  • Plastic Sealer Huge Heavy Duty Bag Making Machine With Flying Knife 50m/Min
  • Plastic Sealer Huge Heavy Duty Bag Making Machine With Flying Knife 50m/Min
Place of Origin Zhejiang
Brand Name Xinda Pelosi
Certification Machinery Test Report
Model Number XP-800FBA
Minimum Order Quantity 1 set
Price To be negotiated
Packaging Details wooden pallet with stretch film wrapping
Delivery Time 60 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 400 Set/Sets per Year machine making die cut handle bag

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Type Bag Forming Machine Bag Type Heavy Duty Bag
Suitable Material Co Extruder Polythylene Material Max Speed 80pcs/min, 50m/min
PLC Control Panasonic Japan Voltage 220V380V
Dimension(L*W*H) 9600*2000*2100 Showroom Location Egypt, Philippines, Brazil, Pakistan, India, Mexico, Russia, Thailand, Chile, Colombia, Ukraine
Weight 1680 KG Key Selling Points Easy To Operate
Highlight

Huge Heavy Duty Bag Making Machine

,

Heavy Duty Bag Making Machine 50m/Min
Leave a Message
Product Description



          Bottom Heavy Huty Plastic Sealer Huge Bag Making Machine With Flying Knife



Specification :



Model
XP-800FBA
bag making length
1100mm
bag making width
600mm
mechanical speed
15-40pcs/min
line speed
40m/min
distance of double sealing line
30-100mm
film thickness
0.06-0.25mm *4
total power
11.4kw
machine weight
2800kg
machine dimension
6*1.5*1.4m
air compressor
6HP




Structure of machine:



1. Material dragging adopt servo motor driver 3KW ,used YASKAWA from JAPAN.

2. Main control panel adopt human-computer interface touch screen real time display

3. The drive system of whole machine control adopt PLC

4. The sealing design is heated by two-sided(up and down)sealing knife, to achieve a strong sealing line

5. Using the design by flying knife cutting off,the knife is easy to be replaced

6. Main motor control by 1.5kw inverter, used yaskawa from JAPAN

7. Photocell used LEUZE from GERMANY

8. Single unwinding max diameter is 800mm, load material by auto pneumatic

9. Back feeding dragging is AC motor control, automatic adjust speed control

10. The whole machine structure is 12mm thickness steel plate

11. Bottom sealing line with cooling leveling device, making more beautiful sealing line

12. Automatic collect table which convenient to arrange the finished bags.




More Related :



1. How to deal with the cold cutting knife of the flat cutting machine?

When the cold cutting knife of the flat edge machine always cuts continuously, it is necessary to check whether the cutting knife is sharp and whether it needs to be re-sharpened. Check whether the balance of the upper and lower knives is appropriate, the knife slide has been used for a long time, and there is a gap of wear, which will lead to the imbalance of the knife.




2, flat mouth machine cut three or more, bag size length is different how to do?

After that thin film, the rubber roller is padded with a layer, which can be uniform with other materials.




3, the spring of the flattening machine is broken, what is the cause?

The self-adhesive strip is not stuck in place, it is curled into the spring, the spring will break, and the self-adhesive strip must be pasted well in the operation. There is also a reason that the material is not neat or a lump is stuffed into the rubber roller, resulting in the spring not breaking.





FQA :





1.Are you factory?
Yes.We have confidence of both the quality and price. Welcome to visit our factory.



2.Where your products have been exported before?
We have lots of clients from different Countries. We have exported to Europe, Southeast Asia,Africa,etc.



3.Methods of Payment?
Trade Assurance on Alibaba:Western Union,T/T(Telegraphic Transfer), Paypal,Credit card, Cash, RMB (Chinese Yuan),Wechat,Alipay,MoneyGram, etc.



4.Voltage?
We can customize the voltage as your request. Like 110v/220v/380v/415v,single phase/three phases.



5.Guarantee?
Our warranty is one year. Free spare parts within one year. Although you have problem of the machine after one year, we can also help you to resolve. So please feel free to contact with us.



6.Installation?
The normal machines are already installed before delivery. So after receiving the machine, you can directly connect to the power supply and use it. We may also send you the manual and operating video to teach you how to use it. For bigger machines. We can arrange for our senior engineers to go to your country to install the machines. They can give you technical training.
