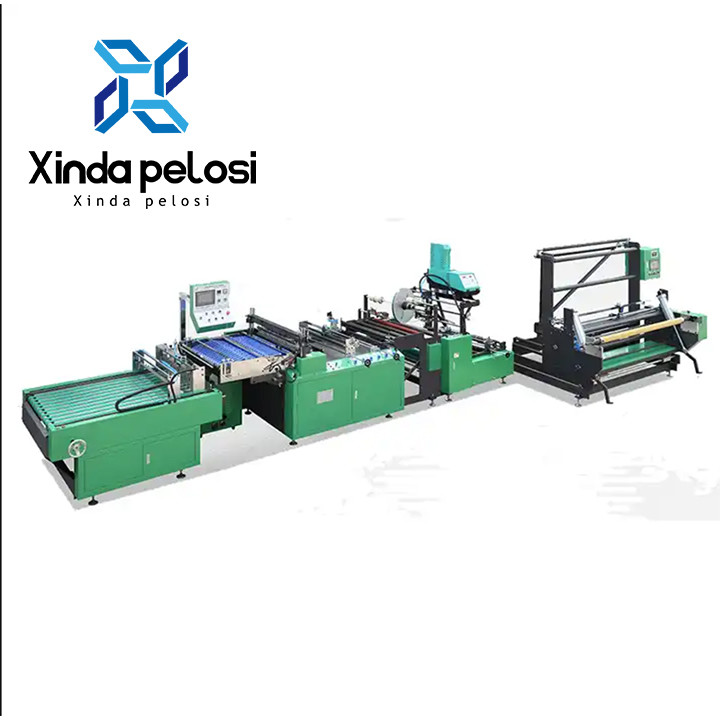

Hot Selling Express Bagging Courier Mail Bag Plastic Mailing Bags With Dhl Bag Making Machine

Specification :

Feature:

1.Touch screen operation and PLC control.

2.Servo motor for fixed length material feeding, Imported photocell for print mark tracking. Precise register on printing pattern, automatic alarming and stop in case of photocell failure.

3.The main machine equipped with servo motor control. The retention time of sealing knife on silicone roller can be set according to the film thickness and requests of bags.

4.Automatic counting, take-out Clipper when setting quantity reached.

5.The Unwinder comes with two photocell for automatic web-guiding, automatic magnetic tension control, accurate folding.

6.Special sealing knife for express bag material, with the features of fast heating, firm and smooth sealing.

7.Film patching device for Way-bill pocket (Optional), special copper knife wedding device for film patching which can weld two layers of film firmly on the outside of the express bag.

8.10KG Hot melt glue device(Optional), coating glue evenly, with the function of automatic glue breaking.

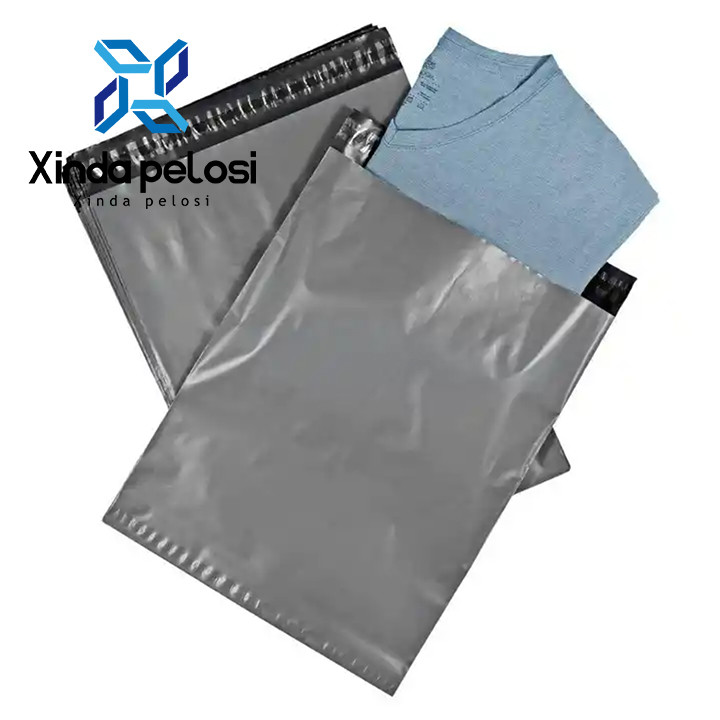

The machine is specially designed and developed for single surface express bags. Single layer sheet material is loaded on the machine, and the welding surface is single - folded - hot melt adhesive is loaded - side welding surface single bag - electric eye tracking - bag making - automatic bag management. All processes are completed at one time. At the same time, it can also produce clothing bags, towel bags, bread bags, jewelry bags, etc

The technology of an Express Bag Making Machine involves advanced mechanisms and processes to efficiently produce express bags. Here's an overview of the key technologies typically employed:

Material Feeding Mechanism: Express Bag Making Machines are equipped with precision material feeding mechanisms to ensure a continuous supply of raw materials. This may involve automatic unwinding of rolls of material, such as polyethylene (PE) or polypropylene (PP) film, from material holders.

​

Cutting and Sealing Technology: These machines utilize cutting-edge cutting and sealing technologies to accurately cut the material to the desired size and seal the edges to form bags. This may include heat sealing, ultrasonic sealing, or high-frequency welding methods to create strong and durable seals.

​

Bag Forming Mechanism: Bag forming mechanisms are employed to fold and shape the material into the desired bag shape. This may involve precise folding and creasing mechanisms to ensure uniformity and consistency in bag dimensions.

​

Printing Technology: Many Express Bag Making Machines are equipped with printing units for customizing bags with logos, barcodes, or other information. This may involve flexographic printing, inkjet printing, or other printing methods for high-quality printing on the bags.

​

Handle Attachment Mechanism (Optional): Some express bags may include handles for ease of carrying. Machines may be equipped with handle attachment mechanisms to add handles to the bags during the manufacturing process.

​

Control Systems: Advanced control systems, including PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) systems, are integrated into Express Bag Making Machines for precise control and monitoring of machine operations. This allows operators to adjust settings, monitor production parameters, and diagnose issues efficiently.

​

Safety Features: Safety features such as emergency stop buttons, safety guards, and sensors are incorporated into the machines to ensure operator safety during operation.

​

Quality Control Systems: Express Bag Making Machines often include quality control systems to ensure that bags meet the required specifications in terms of dimensions, seal strength, printing accuracy, and overall quality. This may involve automated inspection systems and quality assurance protocols to detect and reject defective bags.

FQA :

Q: Are you a factory or trading company?
A:We are a factory

Q:How long is the warranty period?
A: All of our products have one year warranty

Q: What’s the main market of your company?
A: We have customers all over the world

Q:What is your delivery time?

A:Normally,It need 15-30 days, depend on machine model.

Q:Can i get some samples? How can i get it?

A:Yes, will free give some samples for you, you need to bear the courier costs by DHL,FedEx etc.
