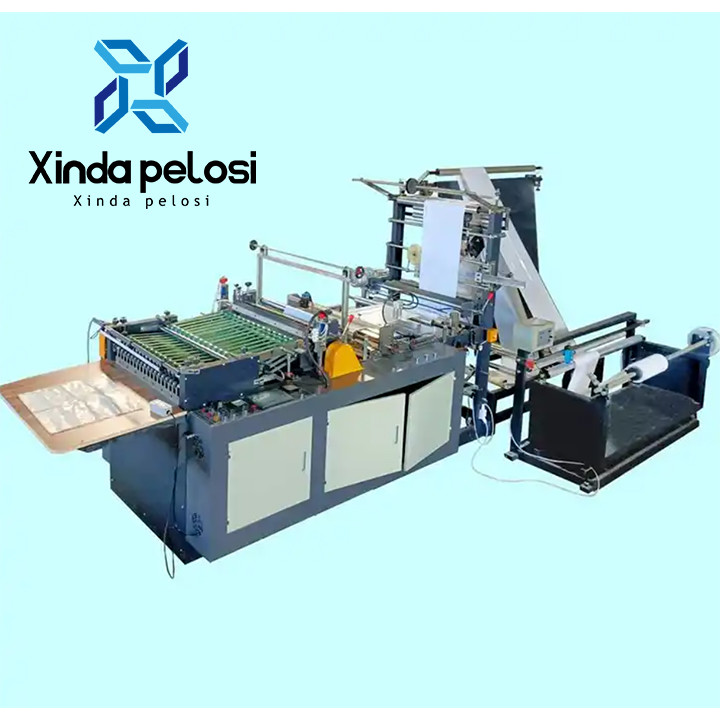

BOPP HDPE LDPE Diaper Bag Making Machine 21KW High Performance
| Place of Origin | Zhejiang |
|---|---|
| Brand Name | Xinda Pelosi |
| Certification | Machinery Test Report |
| Model Number | XP-800SBD |
| Minimum Order Quantity | 1 set |
| Price | To be negotiated |
| Packaging Details | plastic ice cube bag making machine by flying knife system packing details:stretch film & bubble film wrapping onto wooden pallet shipment will be along with spare parts, instruction manual & components' manual. |
| Delivery Time | 70 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 300 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Diaper Bag Making Machine | Bag Type | Side Weld/bottom Weld/double-weld Bag |
|---|---|---|---|
| Weight | 3500 KG | Max Speed | 180pcs/min |
| MATERIAL | BOPP,POF,HDPE,LDPE | Voltage | 220V/380V |
| Dimension(L*W*H) | 10000*2600*1900 Mm | Showroom Location | United States, Brazil, Saudi Arabia, Mexico, Spain, Chile, Colombia, Sri Lanka, Bangladesh, Tajikistan |
| Machinery Test Report | Provided | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
| Highlight | diaper bag making machine 21kw,bopp bag forming machine,bopp diaper bag making machine |
||
Product Description
Automatic Baby Diaper Bag, Diaper Bag Making Machine ,Plastic Bag Making Machine With Spare Parts
Specification :
|
MATERIAL |
BOPP,POF,HDPE,LDPE |
|
FEEDING |
1600mm 800mm |
|
FEEDING SPEED |
45M/MIN |
|
CAPACITY |
≤80PCS/MIN |
|
BAG LENGTH |
≤800mm |
|
BAG WIDTH |
100-700mm |
|
VOLTAGE |
220V/380V, 50Hz/60Hz |
|
POWER |
21KW |
|
DIMENSION |
9900*2500*1700 mm |
|
WEIGHT |
3500KGS |
|
Voltage |
380v, 50 Hz, 3 phases |
|
220v, 50 Hz, 1 phase |
|
|
Working space dimension |
10000*2600*1900 mm (length*width*height) |
|
Item |
Name |
Model |
No. |
|
Control |
Main control |
PLFPXC40T |
1 |
|
|
Screen |
10 inch touch screen |
1 |
|
|
Photocell |
KT5W-2N1116 |
1 |
|
Main transmission |
Main motor |
2KW servo motor& drive |
1SETS |
|
Unwinding part |
Motor |
0.75KW 3ph asynchronous motor |
1 |
|
|
Inverter |
0.75KW |
1 |
|
|
EPC |
SKA21 |
1 |
|
|
Constant tension system |
TEC-600 |
1 |
|
|
Shaft less unwinding, Pneumatic loading |
1 |
|
|
Traction part |
Traction Motor |
1.5KW servo motor & drive |
2SETS |
|
Conveying part |
Motor |
0.75KW 3ph asynchronous motor |
2 |
|
|
Inverter |
0.75KW |
2 |
|
Discharge part |
Motor |
0.75KW 3ph asynchronous motor |
1 |
|
|
0.75KW |
1 |
Yaskawa |
|
Inverter |
Japan |
||
|
Bottom tape inserting part |
Motor |
250W DC reducer |
2 |
|
Temperature control |
Temperature control module |
2unit |
|
|
Pneumatic part |
Pneumatic component |
|
several |
|
Punching part |
Puncher |
D-cut hole, T-shirt hole,Tear hole, air hole |
4 |
Spare Parts List
1 Heating tube 2/set
2 Teflon tape 10/pcs
3 Thermocouple 4/pcs
4 Heating belt 2/pcs
5 (8")flex banner 1/pcs
6 + Screw drive 1/pcs
7 一Screw drive 1/pcs
8 Inner hexagon spanner 1/set
9 Oil gun 1/pcs
10 Manual book 1/pcs
FQA :
1. Your company is a manufacture or a trading company?
We are a manufacture. We also have a trading company to do export work.
2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.
3. Where is your factory located ? How can I visit there?
Our factory located in Guangzhou city, the nearest airport is BAIYUN airport. If you need,
we can we pick you up from airport or train station.
4,What about the warranty?
All of our machines have 1 year warranty.
In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life service, buyer pay for the material cost of exchanging spare parts and repairing.
