Brief Introduction:

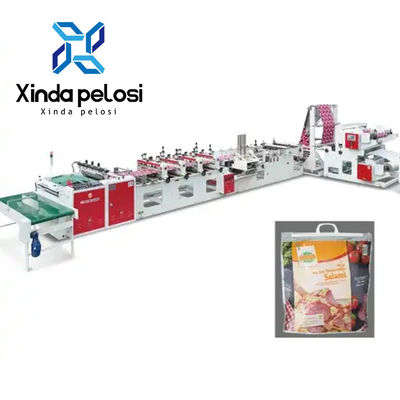

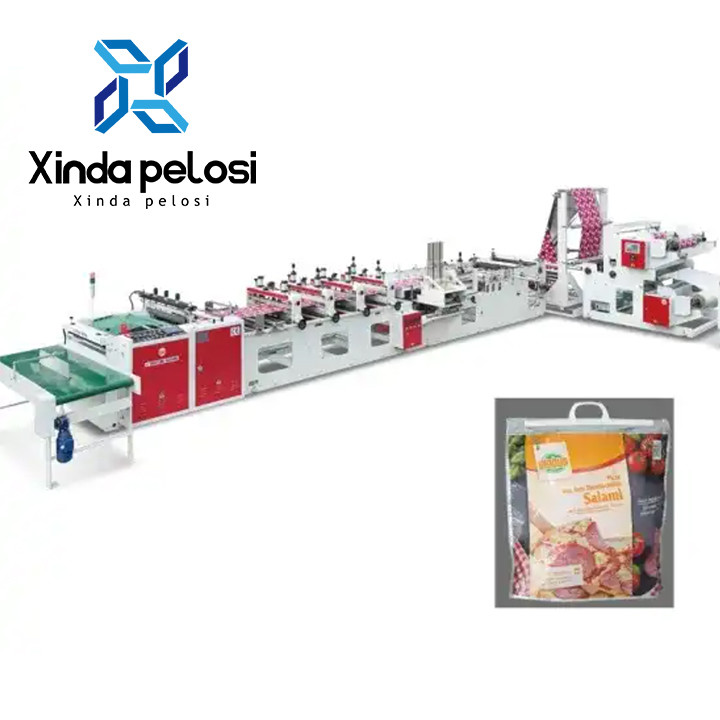

Three layer cooler bag making machine with new design,with rigid hand sealing device,fully automatic production design,simple
operation.The auto rigid hand sealing device can save human cost.

Features:
1.Unwinding with automatic tension control
2.Big diameter roll of discharge rack design,can reduce the downtime.
3.Folding device with special design,to offer the tension of low friction.
4.Fully automatic handle transport device,advantage design,the size and type of rigid handle can be change.
5.New design of heavy duty sealing knife,can make the three layer film bag sealing more firmly,with good effect of insulation and cold.
6.Adopt photoelectric from Sick of Germany,zero fault.

Optional:
1.Punching unit for handle
2. Automatic upper slider device

Structures  :

Common unwinding

1. Unwinding adopt common loading , max diameter of raw rolling materialisφ600mm
2. Adopt magnetic powder tension control. Manual adjust the tension.
3. Unwinding shaft is heavy-chainplug axle

Top-folding continuously sealing device
1. Top-folding continuously sealing, the width size of bag not be limited,
2. Inside heating wire sealing, which is suitable for full colors of bag.
3. Adopt import heat wire, steady warming, hard sealing

Soft loop handle bag device
1. Hydraulic skew angle feeding soft loop
2. 90 degree turnabout gear rotary soft loop
3. Special oblique drag style rotary soft loop
4. Micro-motor driver soft loop handle go forward and back off
5. Centralize style air control system

Patch handle bag device
1. Turnabout cylinder control patch
2. With flying knife cutting fast
3. Special pattern sealing mould
4. Micro-motor driver patch go forward and back off
5. Base mould of patch device adopt whole steel plate

Heat sealing handle punch
1. High hardness gear steel smooth pillar
2. Air outside waster film blower hopper
3. The whole style rotary 180 degree
4. High hardness alloy aluminium puncher base plate

Side sealing parts:
1.Side sealing knife with water cycle cooling system.
2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3. Side sealing knife with concealed style heating tube, temperature steady

Convey collect device
1.Collect table adopt automatic collecting bag feeding (intermission model and continuum model)
2.When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing.
3.Collect table is driven by Micro-motor reducing servo
