High Speed Plastic Courier Bag Making Machine With CE Certification
| Place of Origin | Zhejiang |
|---|---|
| Brand Name | Xinda Pelosi |
| Certification | Machinery Test Report |
| Model Number | XP30 |
| Minimum Order Quantity | 1 set |
| Price | To be negotiated |
| Packaging Details | stretch film/wood case |
| Delivery Time | 30 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 15 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | SEALING MACHINE | Bag Type | Courier Bag/ Dhl Bag |
|---|---|---|---|
| Max Speed | 200pcs/min | Dimension(L*W*H) | 5800*1300*1400MM |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Food & Beverage Shops, Advertising Company, Courier, Shippin | Weight | 3500 KG |
| Warranty Of Core Components | 2 Years | Voltage | 3P 380V 50HZ |
| Certification | CE | Suitable Material | Orange And White |
| Highlight | high speed plastic courier bag making machine,ce courier paper bag making machine,ce plastic courier bag making machine |
||
Product Description

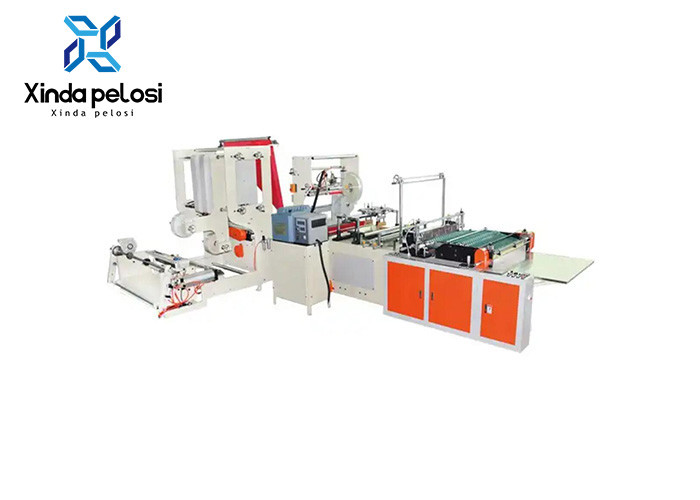

High Speed Plastic New Design Computer DHL Express Courier Bag Making Machine
Specification :
|
Product name
|
All in One Courier Bag Making Machine
|
|
Model number
|
XP-30
|
|
Brand
|
xinda
|
|
Power supply
|
3Phase 380V 50Hz
|
|
Touch screen operation interface(Taiwan Weinview)
|
1 set; 7 inch
|
|
1.5 KW servo drive- DELTA
|
Yes
|
|
1.5 KW Servo motor- DELTA
|
Yes
|
|
Main motor
|
2.2 KW
|
|
Main inverter- DELTA
|
2.2 KW
|
|
Bag size
|
100-700mm
|
|
Bag forming speed
|
100-200 pcs/min
|
|
Bag thickness
|
0.03-0.15 mm
|
|
PLC -YONGHONG-Taiwan
|
FATEK brand
|
|
Reducer & inverter for folding device
|
0.75 KW
|
|
Heat sealing copper knife
|
30 Inch (1 side)
|
|
Film folding device
|
1 set
|
|
Wlue auto-pause funtion (with print)
|
Yes
|
|
With glue auto-pause funtion (without print)
|
Yes
|
|
With full automatic tension control
|
Yes
|
|
Shenshi color tracking electric senser-Yatai
|
2 pieces
|
|
1400mm width heavy duty Auto Edge-bias correcting device
|
With pneumatic-material-loading, air shaft feeding device
|
|
Auto loading
|
Yes
|
|
One rack 2 positions punching device,excluding punch die
|
Yes
|
|
With 4-pole mechanical transmission back pocket sealing device
|
Yes
|
|
10KG Hot melt glue applicator
|
1 set
|
|
Vertical roller back pocket sealing device
|
Can be choosed
|
|
Complete machine with steel plate structure
|
Yes
|
Feature:
This courier bag making machine has been shown 6 times in Chinaplas. We keep breakthrough in technology and performance and had developed it. It’s recognized among the domestic and foreign buyer in the professional courier bag making industry.
Now we had updated to All-in-one machine, with the function of auto-loading, film folding,bill pocket sealing, hot melt glue spraying, sealing &cutting,etc, all process will be finished in one machine to production efficiency rapidly.
In terms of hardware, the machine adopts Taiwan computer servo control system, programmable custom PLC.
Using sensitive electric eye from Europe, with automatic alarming when colors code disappears, effectively reduce operating loss. With function such as up-down rolls changing deice to adhere the service concept of customer demands.
What is the difference between bag machine and bag making machine?
Bag feeding packaging machine refers to the bag designed by the customer, the machine is only responsible for packaging and sealing.
The bag making machine is made by placing the film on the equipment and automatically bagging (adjustable size), filling and sealing by the machine.
The production process of two bags is much more complicated than the bag making machine, but it is much more troublesome than the bag making machine. Transport bag machine generally refers to the formed bag customers.
This machine needs to use a robot to replace the customer molding bag, open the bag, seal the packaging box. This packaging method expands the range of consumers' bag choices, reduces bacterial pollution in the packaging, and reduces manual use, but the price is relatively expensive. Suitable for large-scale automated production;
The bag packaging machine is to put the roll film on the equipment, rather than the bag, the bag is made by the bag packaging mechanism on the equipment, generally using three side sealing, four side sealing, back sealing. Compared with the feeding bag machine, the price is cheaper, but the bag type is single.
FQA :
A) Are you a manufacturer or trading company?
We are manufacturer, with own employees and factory
B)How long has your factory been in this filed?
Since 2003 up to now. In China, as one of earliest and leading technology manufacturers in courier bag making machine,we have more than 19 years professional experiences.
C)How long is the warranty period?
All of our product give 12 months warranty.
D)What is your delivery time?
Normally,It need 15-30 days, depend on machine model.
E)Can i get some samples? How can i get it?
Yes, will free give some samples for you, you need to bear the courier costs by DHL,FedEx etc.
