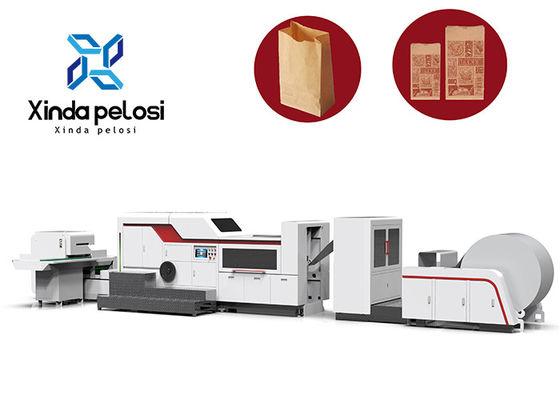

380V 50Hz Automatic Kraft Food Paper Bag Production Machine With Flat Handle

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Kraft Food Paper Bag Production Machine With Flat Handle | Machine Type | Bag Forming Machine |
---|---|---|---|
Material | Paper | Video Outgoing-inspection | Provided |
Max Speed | 150pcs/min, 160pcs/min, 180pcs/min, 200pcs/min, 220pcs/min | Dimension(L*W*H) | 9000X3200X1800MM |
Applicable Industries | Manufacturing Plant, Retail, Printing Shops | Weight | 6000 KG |
Voltage | 380V, 50Hz, Three Phase, Four Wires | Key Selling Points | Easy To Operate |
Highlight | 380V Paper Bag Production Machine,Flat Handle Paper Bag Production Machine,380V Kraft Paper Bag Machine |
Professional Factory Automatic Kraft Food Paper Bag Production Machine With Flat Handle
Specification :
Model
|
XDFD-220
|
XDFD-280
|
XDFD-330
|
XDFD-450
|
XDFD-540
|
Width of Bag(mm)
|
80-220
|
120-280
|
150-330
|
220-450
|
250-540
|
Length of Bag(mm)
|
150-320
|
225-470
|
225-470
|
220-450
|
250-540
|
Width of Bag Bottom
|
50-120
|
60-160
|
60-180
|
80-220
|
120-260
|
Paper Grams(g/m2)
|
50-130
|
60-160
|
60-160
|
80-160
|
90-160
|
Inside Diameter Of Paper Core(mm)
|
76
|
76
|
76
|
76
|
76
|
Maximum Discharge Diameter(mm)
|
ɸ1200
|
ɸ1200
|
ɸ1200
|
ɸ1200
|
ɸ1200
|
Max Speed(pcs/min)
|
200
|
180
|
160
|
150
|
120
|
Total Power(kw)
|
10
|
12
|
12
|
15
|
18
|
Machine Weight (kg)
|
5500
|
7000
|
8000
|
10000
|
11500
|
Machine Size(mm)
|
9000*3200*1800
|
10500*3600*1900
|
10500*3700*1900
|
10500*3800*1900
|
10500*3900*1900
|

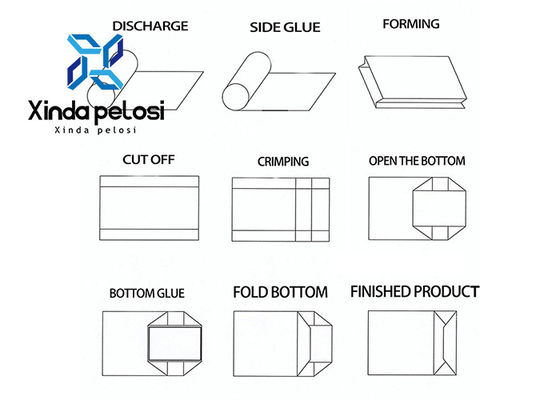

Production method :
Kraft paper bags because of their environmental characteristics, by the people are optimistic, especially in European countries are almost all using kraft paper bags, so there are several kraft paper bag practices.
1, small white kraft paper bags, generally a large number of bags, a wide range of use, because many businesses require this kind of kraft paper bags cheap and durable, usually the practice of this kraft paper bag is machine formed, machine attached rope, completely operated by the machine.
2, the practice of medium-sized kraft paper bags, under normal circumstances, medium-sized kraft paper bags are made of kraft paper bags after the machine is fitted and formed by people manually affixed rope, due to the current domestic kraft paper bag molding equipment is limited by the molding size, and kraft paper bag attaching rope machine can only be attached to the smaller handbag rope, so the practice of kraft paper bags is limited by the machine. Many bags cannot be made by machines alone.
3, large bags, kraft paper bags with reverse head, thicker kraft paper bags, these kraft paper bags are purely handmade, at present, there is no machine that can solve these kraft paper bags forming, can only be handmade, such kraft paper bags have higher production costs, the number will not be very large.
4, no matter what kind of kraft paper bag above, if the number is not large enough, it is generally made by hand, because the machine makes kraft paper bags with large loss, there is no way to solve the small number of kraft paper bags.
