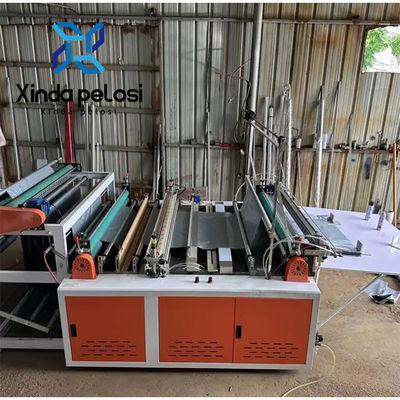

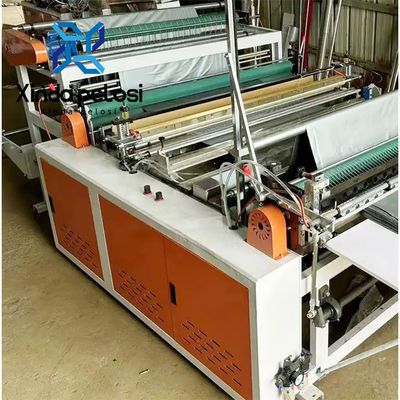

Strong Heat Sealing Coreless Roll Garbage Bag Making Machine 250pcs/Min

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Garbage Bag Manufacturing Machine | Machine Type | GARBAGE BAG |
---|---|---|---|
Material | Plastic | Video Outgoing-inspection | Provided |
Max Speed | 250pcs/min | Dimension(L*W*H) | 2600*1300*1800mm |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Weight | 800 KG |
Voltage | 220V | Key Selling Points | Easy To Operate |
Highlight | garbage bag making machine 250pcs/min,coreless roll garbage bag making machine,250pcs/min garbage bag manufacturing machine |
Strong Heat-Sealing Device Coreless Roll Garbage Bag Making Machine,Garbage Bag Manufacturing Machine For Needs
Specification :
Main Technical Parameters |
XDP Series Double Layers 4 Lines Cold Cutting Bag Making Machine |
|||
Model |
XDP600 |
XDP700 |
XDP800 |
|
Max Bag Width |
550mm |
650mm |
750mm |
|
Max Bag Length |
1200mm |
1200mm |
1200mm |
|
Thickness of material |
0.008-0.12mm |
0.008-0.12mm |
0.008-0.12mm |
|
Machine Speed |
40-120pcs*4/min |
40-120pcs*4/min |
40-120pcs*4/min |
|
Power of Main Motor |
1.5kw |
1.5kw |
1.5kw |
|
Machine weight |
700kg |
800kg |
900kg |
|
Machine Dimension |
2600*1100*1800mm |
2600*1200*1800mm |
2600*1300*1800mm |
Product Application:
This machine can produce and print natural-color vest bags by taking HDPE and LDPE cylindrical films as raw materials, is provided with PLC control, double servo motor length fixing .it can once finish the feeding, bottom sealing, cutting, punching and transport, and has high automation and favorable economic profits
Performance characteristics:
1. This machine uses HDPE, LDPE, biodegradable materials and tube film as raw materials to produce natural and printed vest bags. Using computer programming control system, servo motor automatically fix the length, from feeding, sealing, cutting, punching, and conveying are completed at one time.
2. It is equipped with domestic servo motor control system and computer control, LPC LCD screen display and Panasonic
photoelectric eye tracking control, intuitive and convenient operation, and can produce color printing bags at the same time.
3. The host adopts frequency converter to simulate speed control and automatic feeding system to make bag making stable and sealing and cutting accurate. Automatic punching machine folding device, conveyor belt bag feeding function,
4. Blowing type discharging system, coordinated with bag bottom shaping design, neat bag collection, accurate clamping and punching position.
5. The cutter adopts independent current heating, and the high-precision temperature controller automatically controls the temperature, which is easy to operate and accurate in temperature control.
6. The whole machine adopts IC electronic circuit automatic control, socket-type design, easy to change and install; and has the function of stopping without material, material interruption, and material blocking
7. With many years of leading technology in the plastic machinery industry, our company has made breakthrough progress in research and development, and created a new generation of high-speed bag making machines and punching machines.
FAQ :
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer. We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.Our guarantee is one year.
