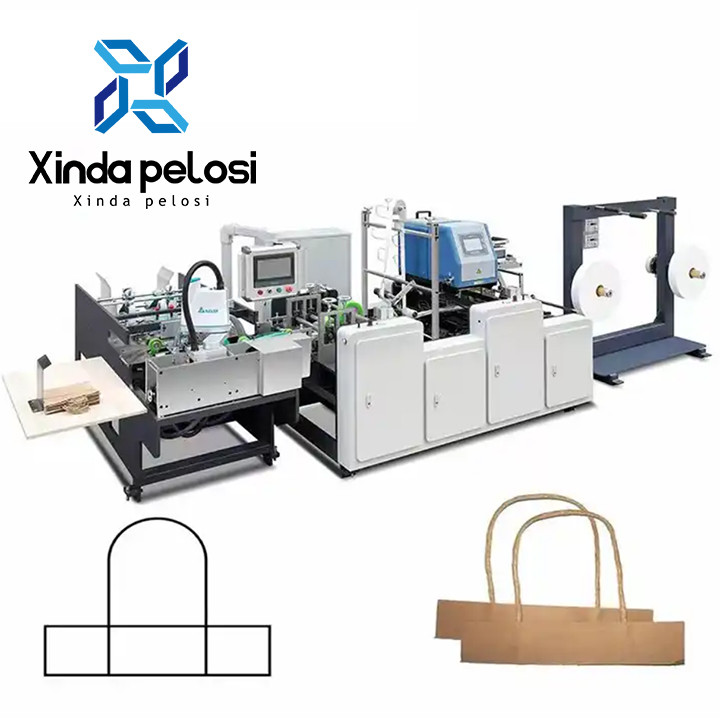

High Efficiency Paper Bag With Handle Making Machine PLC Control

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Paper Bag Making Machine With Handle | Bag Type | Shopping Bag |
---|---|---|---|
Material | Paper | Applicable Industries | Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Food & Beverage Shops, Other, Advertising Company, Bag Flat Twisted Handle Making Pasting Machine |
Speed | 35~40 Pcs/min | Voltage | 380V |
Dimension(L*W*H) | 7000*1600*1500mm | Feature | High Efficiency |
Weight | 4900 KG | Max Speed | 30-35 Pcs/min, Bag Flat Twisted Handle Making Pasting Machine |
Highlight | high efficiency paper bag with handle making machine,paper bag with handle making machine plc control,high efficiency paper handle making machine |
Manufacturers Twisted Paper Handle Production Line Paper Bag ,Paper Bag Making Machine With Handle

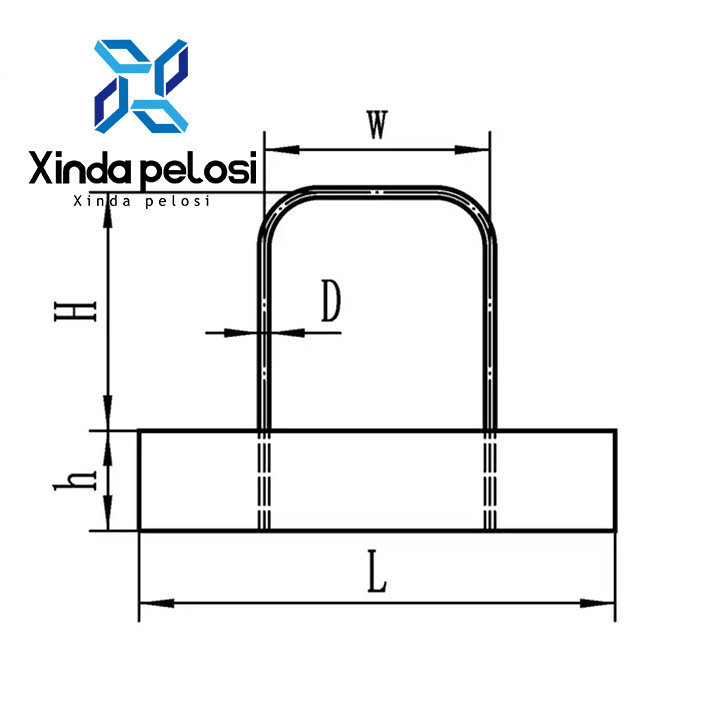

Specification :
Machine Model |
XDP |
Rope spacing(A) |
84mm |
Rope width(B) |
12mm |
Paper rope height(C) |
100mm |
Paper width(D) |
40mm |
Paper length(E) |
152mm |
Rope length |
352mm |
Bag width |
250-400mm |
Bag height |
250-450mm |
Top opening size |
Over 130mm |
Production speed |
35~40 pcs/min |
Servo motor power |
750W |
Total power |
380V,10KW,50HZ |
Overall dimension |
L7000*W1600*H1500mm |
Components |
|
Item |
Brand/Origin |
Motor |
Longbang geared motor(China) |
Servo motor |
Siemens(Germany) |
PIC programming |
Siemens(Germany) |
Hot melt glue machine |
Huangshang(Taiwan) |

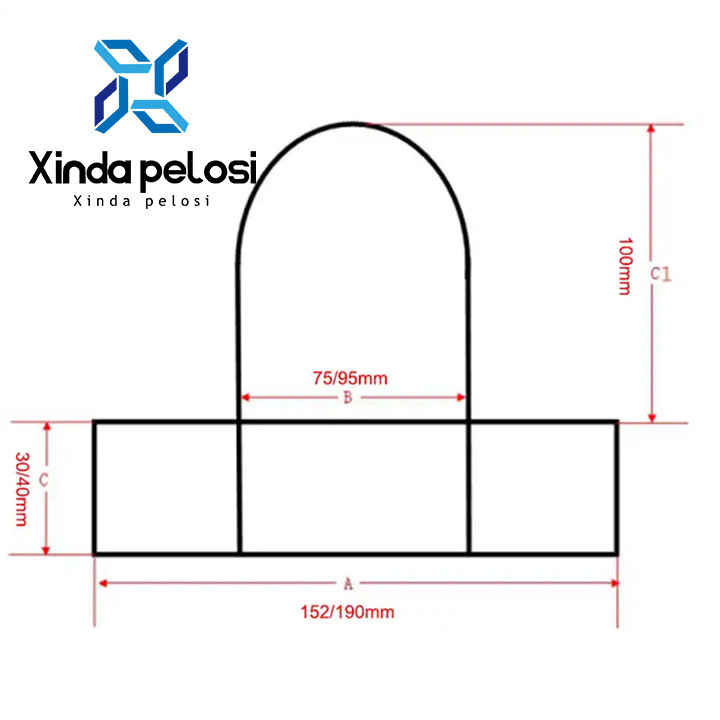

Machine Model |
XDP-1 |
Handle Spacing |
108mm |
Paper Rope width |
12mm/15mm |
Paper Rope Height |
10cm |
Paper Width |
40mm |
Paper Length |
152/190mm |
Paper Rope Length |
352mm |
Paper Gram Weight |
100-120g/㎡ |
Production Speed |
6000pairs/h |
Power Requirements |
380V |
Total Power |
10KW |
Total weight |
Appr.4000kg |
Overall Dimension |
L5000*W1500*H1500mm |
Glue Type |
Hot-melt glue |
Machine Model |
XDP-2 |
Power |
150W |
Power Supply |
220V 50HZ |
Gluing Width |
0-40mm |
Gluing Speed |
20pcs/min |
Machine Dimension |
300*290*260mm |
Weight |
13KG |
Application:
These two machines mainly produce round rope and flat rope handles for paper bags and stick the handles to the paper bags. They are an important part of the production of paper bags. This machine has powerful functions, high quality and high production efficiency. Is your best choice.
Features:
1. Using Taiwan weinview touch screen man-machine interface control system, the operation is clear at a glance.
2. Double unwinding device
3. Use the alignment device to ensure that the handle patch is in the correct position
4. High-quality hot melt adhesive system can reduce melt cost and defective products
5. Top brand hot melt adhesive system made in Taiwan, durable and long service life
7. The delta manipulator made in Taiwan is durable and has a long service life
8. Siemens servo drives and inverters
FQA :
1.What is a Paper Bag Making Machine with Handle?
A Paper Bag Making Machine with Handle is a specialized equipment used in the paper converting industry to manufacture paper bags with handles. It automates the process of producing paper bags, including handle attachment, for various applications.
2.How does a Paper Bag Making Machine with Handle work?
The machine typically starts by feeding paper materials into the system. It then goes through a series of processes including printing, creasing, folding, gluing, handle attachment, and cutting to produce finished paper bags with handles.
3.What types of paper bags can be produced with this machine?
These machines can produce various types of paper bags, including shopping bags, gift bags, promotional bags, and more, with different sizes, shapes, and handle styles to meet specific customer requirements.
4.What are the key features of a Paper Bag Making Machine with Handle?
Key features include automatic operation, high-speed production, adjustable settings for bag dimensions and handle placement, printing capabilities for branding and customization, precise folding and gluing mechanisms, and handle attachment units.
5.What are the typical applications of a Paper Bag Making Machine with Handle?
These machines are used in industries such as retail, packaging, advertising, and more, where paper bags with handles are commonly used for packaging, branding, and promotional purposes.
6.Where can I purchase a Paper Bag Making Machine with Handle?
These machines are available from various manufacturers, distributors, and suppliers specializing in paper converting equipment. It's essential to choose a reputable supplier and ensure the machine meets your specific production requirements.
7.What are the benefits of using a Paper Bag Making Machine with Handle?
Benefits include increased production efficiency, reduced labor costs, consistent quality and appearance of paper bags, customization options for branding and marketing, and environmentally friendly packaging solutions compared to plastic bags.
8.What safety precautions should be followed when operating this machine?
Operators should receive proper training on machine operation and safety procedures. Safety guards, emergency stop buttons, and interlock systems should be in place and regularly maintained to prevent accidents.
