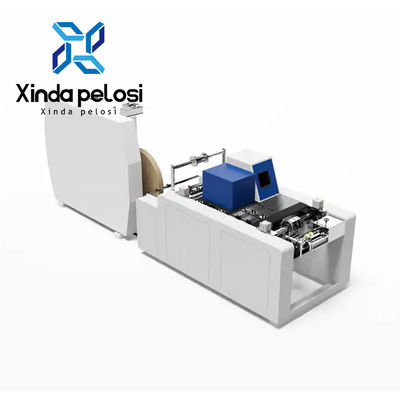

High Speed 220V Twisted Paper Handle Making Machine For Kraft Square Bottom Bag

Place of Origin Zhejiang
Brand Name Xinda Pelosi
Certification Machinery Test Report
Model Number XP-BS200
Minimum Order Quantity 1 set
Price To be negotiated
Packaging Details Wooden cases film
Delivery Time 20days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 30 Set/Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Twisted Paper Handle Making Machine Bag Type Shopping Bag
Material Paper Applicable Industries Garment Shops, Food & Beverage Factory, Printing Shops, Other, Advertising Company
Key Selling Points Easy To Operate Voltage 220V
Dimension(L*W*H) 4000 X 1300 X 1500mm(LWH) Feature High Efficiency
Weight 1500 KG Max Speed 180m/min, 10000Pairs/h
Highlight

220v twisted paper handle making machine

,

220v twisted paper rope handle making machine

,

high speed twisted paper handle making machine

Leave a Message
Product Description



High Speed Twisted Paper Handle Making Machine For Kraft Square Bottom Paper Bag Handle








Specification :



Model

XDP-TH

Handle Type

Twist Handle

Glue Type

Hot-melt Glue (Standard)

Water Glue (Optional)

Handle Patch Paper Sheet Width(a)

152mm or 190mm

Twisted Rope Distance(b)

75mm or 95mm

Handle Patch Paper Sheet Height(c)

40mm (Standard)

30-50mm (Optional)

Twisted Rope Height(d)

100mm

Handle Patch Paper Thickness

100-120gsm

Rope Handle Diameter

3-4mm

Production Speed

10000Pairs/h

Handle Patch Paper Roll Diameter

1000mm

Paper Core Diameter

76 mm (3")

Machine Power

7.8kw

Machine Weight

1500kg

Machine Size (LWH)

4000 x 1300 x 1500mm









This Twisted Paper Bag Handle Making Machine Can Automatically Use a Two-Layer Narrow Paper Roller And One Twisted Rope As Raw Material To Make The Twisted Paper Handle, Which Can Be Pasted Into The Paper Bag Used
For Making The Twisted Handle Paper Bags. It Is Leading Support For Square Bottom Paper Bag Machines.









Key Features:

  • Automatic Operation: The machine is equipped with advanced automation systems for seamless operation, reducing the need for manual intervention and increasing production efficiency.

  • High-Speed Production: Designed for high-speed production, the machine can handle large volumes of paper handles, meeting the demands of industrial-scale manufacturing.

  • Adjustable Settings: The machine offers adjustable settings for handle dimensions, including length, thickness, and twist density, allowing for customization based on specific requirements.

  • Precision Twisting Mechanism: Incorporating precision twisting mechanisms, the machine ensures uniform and tightly twisted paper ropes, resulting in handles of consistent quality and strength.

  • Versatility: The machine is versatile and compatible with various types and grades of paper materials, accommodating different sizes and styles of paper handles for a wide range of applications.

  • User-Friendly Interface: Equipped with a user-friendly interface and intuitive controls, the machine is easy to operate and allows for quick setup and adjustment.

  • Safety Features: Safety features such as emergency stop buttons, interlock systems, and protective guards are integrated into the machine to ensure operator safety during operation.







Applications:

The Twisted Paper Handle Making Machine is used in industries such as retail, packaging, advertising, and manufacturing, where paper bags with handles are commonly used for packaging, branding, and promotional purposes. It is suitable for producing handles for shopping bags, gift bags, promotional bags, merchandise bags, and more.













FQA :



1.What is a Twisted Paper Handle Making Machine?

A Twisted Paper Handle Making Machine is a specialized piece of equipment used in the paper converting industry to manufacture twisted paper ropes, which serve as handles for paper bags.



2.How does a Twisted Paper Handle Making Machine work?

The machine processes paper strips or cords through a twisting mechanism, resulting in tightly wound paper ropes. These ropes are then cut to the desired length to create handles for paper bags.



3.What types of paper bags can be produced with handles made from this machine?

Handles produced by this machine can be used for various types of paper bags, including shopping bags, gift bags, promotional bags, and more.



4.What are the key features of a Twisted Paper Handle Making Machine?

Key features include automatic operation, high-speed production, adjustable settings for handle dimensions, precision twisting mechanisms, and compatibility with different types of paper materials.



5.Where can I purchase a Twisted Paper Handle Making Machine?

These machines are available from various manufacturers, distributors, and suppliers specializing in paper converting equipment.



6.What are the benefits of using handles made from this machine?

Benefits include increased strength and durability of paper bag handles, enhanced aesthetic appeal, eco-friendliness compared to plastic handles, and customization options for branding and marketing purposes.



7.What safety precautions should be followed when operating this machine?

Operators should receive proper training on machine operation and safety procedures. Safety guards, emergency stop buttons, and interlock systems should be in place and regularly maintained to prevent accidents.
