Electric Eye Automatic Bottom Sealing And Cutting Machine 220Volt 50/60Hz
| Place of Origin | Zhejiang |
|---|---|
| Brand Name | Xinda Pelosi |
| Certification | Machinery Test Report |
| Model Number | XP-BS200 |
| Minimum Order Quantity | 1 set |
| Price | To be negotiated |
| Packaging Details | 1pc/ctn |
| Delivery Time | 7days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Bottom Sealing And Cutting Machine | Bag Type | Plastic Bag |
|---|---|---|---|
| Cutting Speed | 30-160pcs/min | Material | Plastic |
| Voltage | 220V | Dimension(L*W*H) | 580*760*730(mm) |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company | Warranty | 1 Year |
| Applied Material | Film/PE/PVC/HDPE | Weight | 83 KG |
| Highlight | 220volt bottom sealing cutting machine,220volt bottom sealing and cutting machine,60hz bottom sealing cutting machine |
||
Product Description

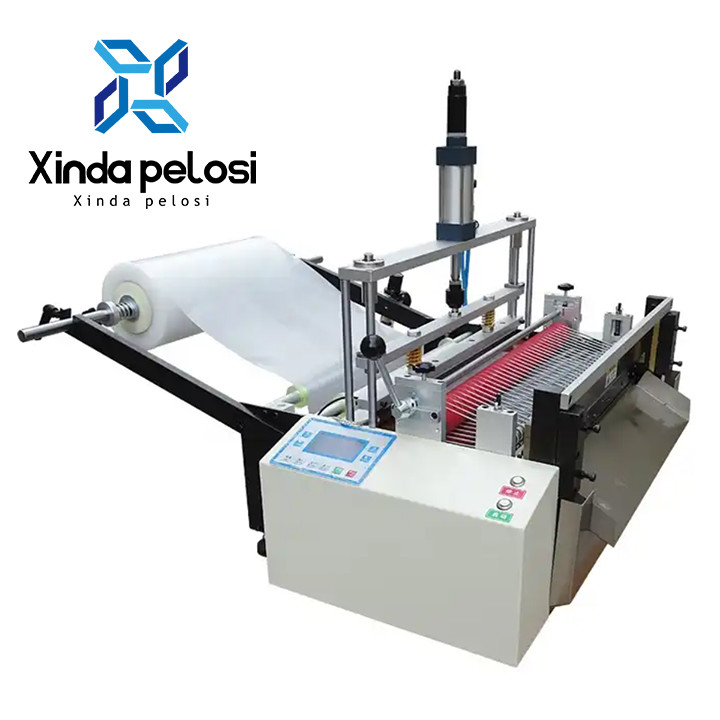

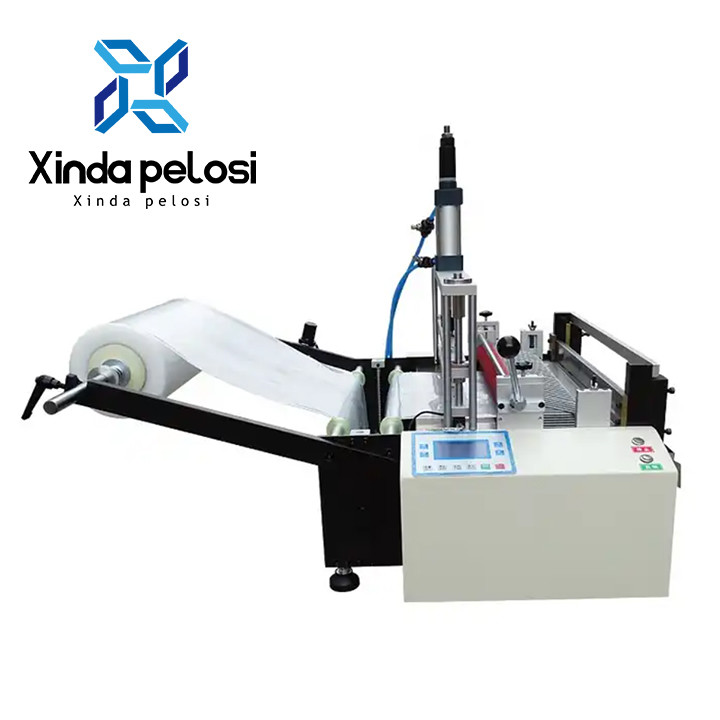

Electric Eye Automatic Bottom Sealing And Cutting Machine With Heat Sealing Cold Cutting PE Bag
PARAMETER
Pdoduct name | Bottom Sealing And Cutting Machine |
Product model | XDP-200ZD |
Power supply | 220V 50/60Hz |
Cutting length(mm) | 0.1-9999.9mm |
Cutting speed | 30-120pcs/min |
Heat sealing width | 1-480mm |
Cutting precision | 0.1mm |
Weight | 83kg |
Size (L*W*H) | 580*760*730(mm) |
Features:
1.Controlled by microcomputer, the length, speed and quantity can be adjusted.
2.The overall structural design is reasonable and durable.
3.The operation is simple, and one machine equals to 3 to 5 works instead of manual work.
4.The application scope is wide, and all kinds of materials and other roll materials can be cut.
5.The blade with inlaid steel has higher hardness, wear resistance and long service life.
6.The heat sealing device can be disassembled and replaced, the temperature can be adjusted, suitable for sealing various materials and thickness materials.
Material application
It is suitable for cutting various roll materials such as PE film, roll film, PVC film, PET film, OPP film, PP film, heat shrinkable film, anti-static film, printing and packaging film.

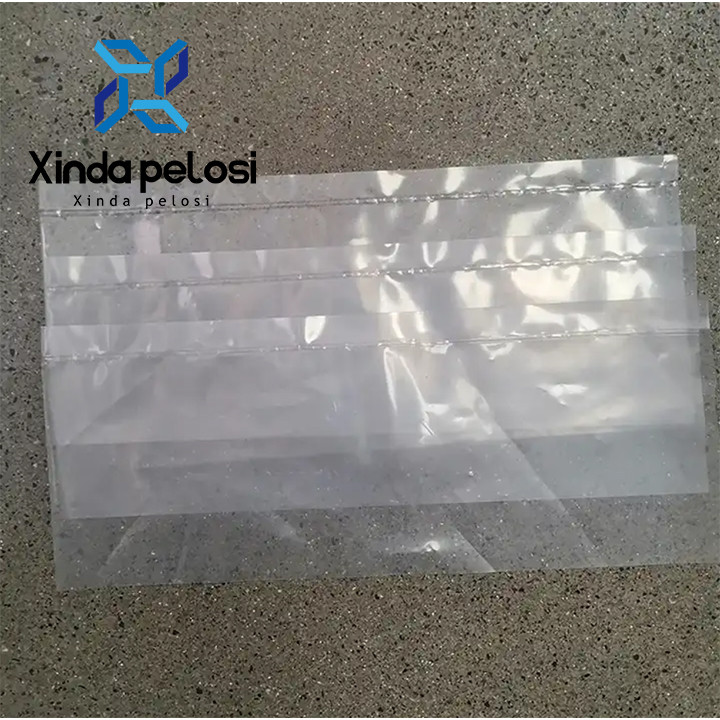

Cut samples
It is suitable for cutting various plastic bags such as PE flat bags, PVC heat shrinkable bags, PET bags, OPP bags, PP bags, anti-static bags, printed packaging bags, roll film packaging bags, etc.
Product principle:
1. Automatic group accumulation and total cumulative count
2. Batch pause and delay time can be set
3. There are various manual operations for debugging
4.Fully automatic cutting of various plastic bags, flat bags, heat shrinkable films, electrostatic bags and other materials
5. High-speed feeding, controlled by microcomputer program with an accuracy of 0.1mm
6. High-speed stepping motor accurately controls cutting length and speed
7. Cutting time protection; total setting; sub-setting; adjustable timeout
8. The cutter speed is adjustable, all Chinese LCD display, export or foreign companies can be customized English version
9. The length and speed are arbitrarily adjustable, fully automatic cutting and automatic feeding, completely liberating labor
10.LCD large screen intuitive Chinese display, simple and convenient operation; using special mechanical structure and special tools,With special software control, it solves the problem of uneven cutting in other manufacturers, reaching the level of the slit and the length
11. Fast feeding speed, high cutting force, high cutting efficiency, stable performance, cutting all kinds of hard and thick materials, high cutting precision and straight cut
12. The heat sealing device can be disassembled and replaced, and the temperature is adjustable, which is suitable for sealing various materials and thickness materials.
Pre-sale service
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service:
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
