Easy Operate Flat Paper Bag Handle Making Machine 40pcs/Min 10KW
| Place of Origin | Zhejiang |
|---|---|
| Brand Name | Xinda Pelosi |
| Certification | Machinery Test Report |
| Model Number | XP-BS200 |
| Minimum Order Quantity | 1 set |
| Price | To be negotiated |
| Packaging Details | Wooden cases film |
| Delivery Time | 20days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 30 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Bag Forming Machine | Bag Type | Shopping Bag |
|---|---|---|---|
| Material | Paper | Max Speed | 40pcs/min |
| Core Components | Gear, PLC | Voltage | 330v |
| Dimension(L*W*H) | 7000*1600*1500 | Applicable Industries | Manufacturing Plant, Printing Shops, Advertising Company, Paper Making Mill, Tissue Paper Making Mill, Recycle Paper Mill, Toilet Paper Making Mill |
| Weight | 2000 KG | Flat Rope Length | 352MM |
| Highlight | paper bag handle making machine 40pcs/min,40pcs/min paper bag with handle making machine,10kw paper bag handle making machine |
||
Product Description

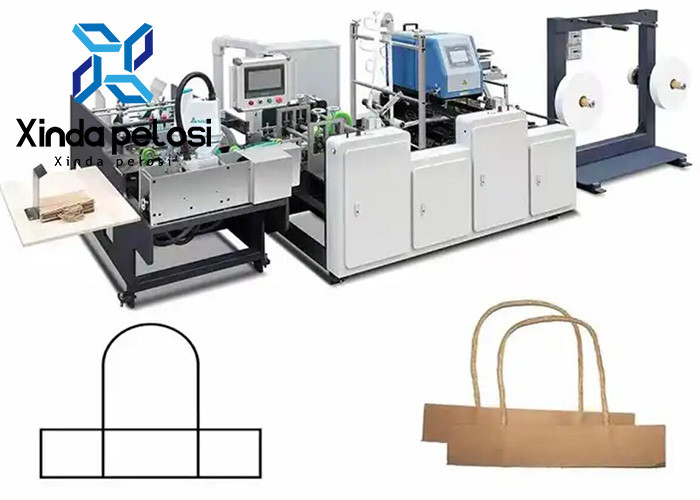

Manufacturing Plant Easy Operate Supporting Equipment Flat Paper Handle Making Machine
Specification :
|

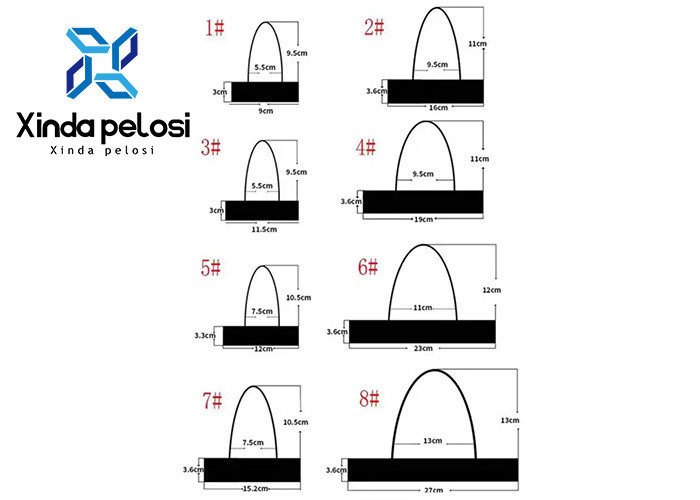

Flat Rope length
|
352mm
|
|
|
Bag width
|
250-400mm
|
|
|
Bag height
|
250-450mm
|
|
|
Top opening size
|
Over 130mm
|
|
|
Production speed
|
35~40 pcs/min
|
|
|
Servo motor power
|
750W
|
|
|
Total power
|
380V,10KW,50HZ
|
|
|
Overall dimension
|
L7000*W1600*H1500mm
|
|
|
Components
|
||
|
Item
|
Brand/Origin
|
|
|
Motor
|
Longbang geared motor(China)
|
|
|
Servo motor
|
Siemens(Germany)
|
|
|
PIC programming
|
Siemens(Germany)
|
|
|
Hot melt glue machine
|
Umastec(China)
|
|
|
Mechanical arm
|
HIWIN(Taiwan)
|
|
Three ways to wear a paper handbag and types of hand-held rope :
1, three strands of twisted rope, cotton rope, ribbon rope these in the handbag production use very much, rich color, variety of material choices, such as: twill belt rope, eight strands of rope, crochet rope, hermitage belt, thread belt, polyester belt, etc., after the handbag production is completed, the two ends of the rope into the die-cut reserved rope holes can be simple and convenient can be matched with various shapes of the handbag.
2, rivet bag is more high-end, atmosphere, but the production is also more troublesome, the use of riveting gun perforation in the later production of the bag, the hand rope is fixed on the paper bag through the rivets, because the rivets are one in front of the other, so it is necessary to use flat rope, such as ribbon, paper rope and so on.
3, hand-pulled paper rope is divided into round hand-pulled rope, square hand-pulled rope, often used in food paper bags, takeout paper bags, baking paper bags, etc., in the late customization of hand-pulled paper rope can be sticky.
Why choose to use a flat rope as a paper bag handle?
Flat rope paper bag handle refers to the paper rope folded with relatively high quality kraft paper.
The benefits of kraft paper are no longer too much to elaborate, in addition to the surface will be some appearance of defects but excellent practicality, such a portable paper bag handle made of flat, folded width of the hand bag rope control between 1 and 2cm, neither too large nor too small.
In addition, in order to make up for the appearance of the kraft paper itself, it can also be made into stripes and other styles, greatly improving the beauty of the entire hand-held paper bag, changing its unique natural wood color to make the entire hand-held rope with the paper bag more perfect.
Compared with the round rope handle, the design of the flat handle also increases the contact area between people and hand-held paper bags, the pressure on the hand will be relatively reduced, and it is more comfortable when carrying hand-held paper bags.
In the market, this humanized design is recognized by many consumers.
FQA :
1.Are you an manufacturer or only a trading company?
RE:We are a professional package machine manufacturer since 2003, and we have many sales agents.
2.What about your price and quality?
RE:Xinda Pelosi machinery pays attention to quality first, price second.We focus on providing customers with high quality products and 24*7 after-sales protection.
3.How can I get visit your factory?
RE:We are located in Zhejiang Province, China. You could fly to Shanghai, then change another fly to Wenzhou or take high-speed rail to Ruian station. We will pick you up in the station if you let us know in advance.
4.How about l after-sales service?
RE:We support and follow your work after you buy our machines or products.If your problem could not be dealing by words online, we will arrange our engineer or our sales agents to solve your problem.
5.How many years guarantee?
RE:Our machines quality is no problem in 5years.Usually,One year guarantee, beyond the time only charge the cost, free technical support for life.
6.How can I be your agent and what good points can I have?
RE:If you are a package machine wholesaler or you have been this market for a long time, it is easy to be our agents.We will sign an agency agreement after the first order and give you 5-10 points depending on the model of the machines.
