CE 380V Stand Up Zipper Pouch Making Machine Three Side Seal Bag Making Machine
| Place of Origin | Zhejiang |
|---|---|
| Brand Name | Xinda Pelosi |
| Certification | Machinery Test Report |
| Model Number | XPFD |
| Minimum Order Quantity | 1 set |
| Price | To be negotiated |
| Packaging Details | plastic ice cube bag making machine by flying knife system packing details:stretch film & bubble film wrapping onto wooden pallet shipment will be along with spare parts, instruction manual & components' manual. |
| Delivery Time | 70 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 300 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Zipper Pouch Making Machine | Bag Type | Zipper Bag |
|---|---|---|---|
| Max Speed | 150pcs/min, 150times/min X2 Line | Machinery Test Report | Provided |
| Material | Plastic | Weight | 6800 KG |
| Warranty Of Core Components | 1 Years | Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
| Voltage | 380V,50-60Hz | Dimension(L*W*H) | 12000 *2600 *1950mm |
| Highlight | 380v stand up zipper pouch making machine,ce three side seal bag making machine,ce stand up zipper pouch making machine |
||
Product Description
Automatic Zipper Pouch Making Machine Three Side Seal Doypack Zipper Stand Up Pouch Making Machine

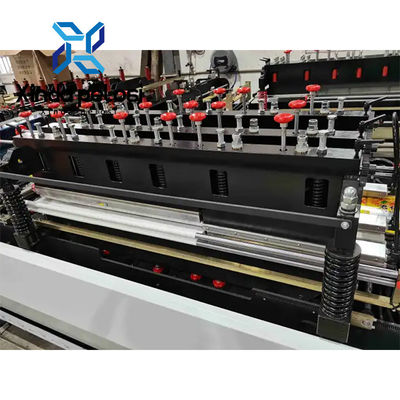

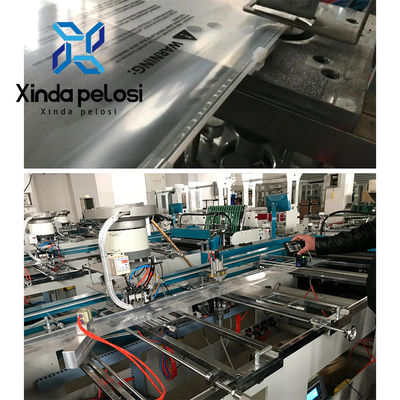

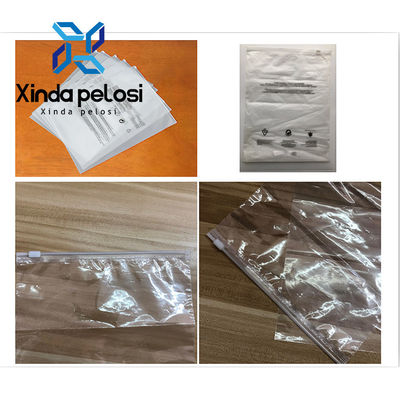

Product images :
This double line stand up pouch making machine is suitable to use different kinds of laminated (Compounded) film to make 3 Side Sealing bags, Stand Up Bag, Zipper bags, etc.
● Use Laminated Material
● With Auto Tension Control System
● With Photo Sensor System
● With PLC Touch Screen System
● With Servo Motor Drive System
● Optional: Water Chiller
|
Model |
KTSS -SZ600 |
|
Bag Type |
Stand Up Zipper Bag & Zipper Bag |
|
Max. Raw Material Width |
1250mm (49.2”) |
|
Bag Making Width |
70-580mm (23.6”) |
|
Bag Making Length |
70-400mm (Standard) / (2.76”-15.7”) |
|
(70-400mm) x6 (Skip Function for Over Length Bag) |
|
|
Max. Raw Material Diameter |
Φ600mm (23.6”) |
|
Bag making speed |
150pcs/min |
|
Material Feeding Speed |
40m/min |
|
Machine Power |
3 Phase 220 / 380 / 440v 50/60Hz |
Product Introduction:
Three Side Sealing Spouted Pouch Machine is well-processed and assembled, beautiful in appearance and reasonable in structure. The 3 Sides Sealing Zipper Doypack Pouch Self Stand Up Bag Making Machine runs smoothly, low noise, easy zipper adjustment, accurate upright pouch punching, and fast running speed. PLC three-servo traction control is adopted, and the temperature computer is centrally controlled, which reduces electricity consumption. The main discharge and double vertical insert bottom discharge adopt constant tension control, which ensures the smoothness of the pulling material and the accuracy of the vertical punch control. The intermediate tension floating roller adopts dynamic compensation mode, so that the fluctuation up and down in the process of pulling material is minimal, and the intermediate tension control is stable.
FQA :
1.What is a zipper pouch making machine?
A zipper pouch making machine is specialized equipment used to manufacture zipper pouches, which feature a reclosable seal for easy opening and closing.
2.How does it work?
The machine processes rolls of plastic film, cutting, sealing, and forming them into pouches with zipper closures through precise mechanisms for zipper attachment, cutting, sealing, and pouch forming.
3.What materials can it handle?
Zipper pouch making machines can work with various plastic films like polyethylene (PE) and polypropylene (PP), commonly used for packaging.
4.What are its benefits?
Benefits include increased production efficiency, reduced labor costs, consistency in pouch quality and dimensions, customization options, and the ability to produce pouches with convenient zipper closures.
5.Is training required to operate it?
Yes, operators typically require training on machine operation, maintenance procedures, troubleshooting, and safety protocols.
6.What maintenance does it need?
Regular maintenance includes cleaning, lubrication, inspection of machine components, and replacement of worn parts to ensure smooth operation and prevent downtime.
7.Can it be customized?
Yes, many machines offer customization options for pouch dimensions, material types, printing, zipper placement, and more to meet specific requirements.
