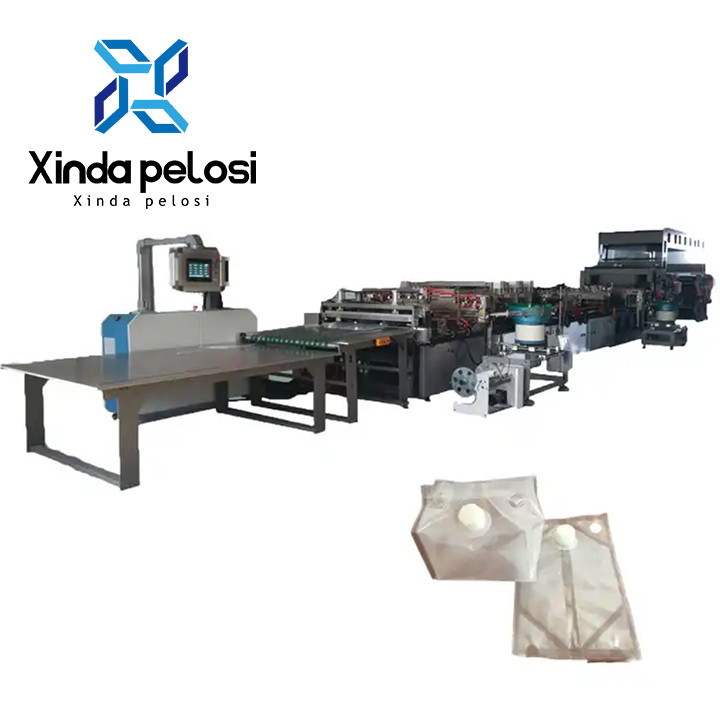

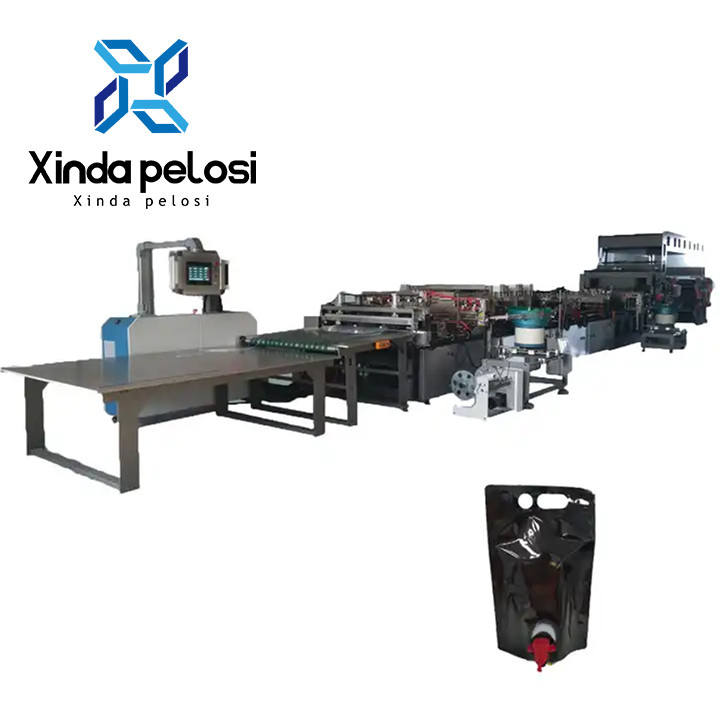

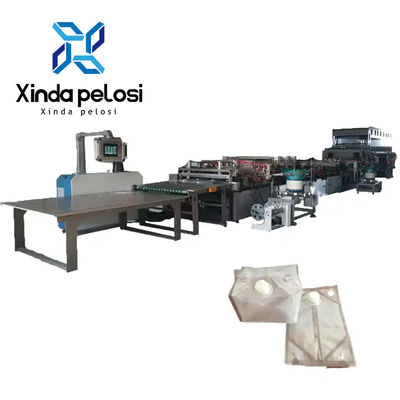

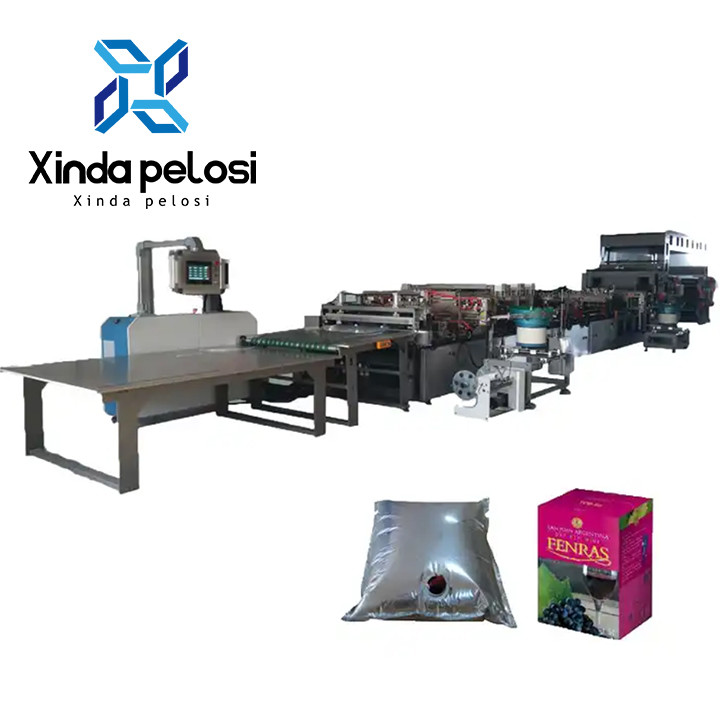

High Speed Automated Liquid Bag Making Machine For Coffee Juice 30pcs/Min

  • High Speed Automated Liquid Bag Making Machine For Coffee Juice 30pcs/Min
  • High Speed Automated Liquid Bag Making Machine For Coffee Juice 30pcs/Min
  • High Speed Automated Liquid Bag Making Machine For Coffee Juice 30pcs/Min
Place of Origin Zhejiang
Brand Name Xinda Pelosi
Certification Machinery Test Report
Model Number XP-Y200/250
Minimum Order Quantity 1 set
Price To be negotiated
Packaging Details Irregular Special Shaped Bag Liquid Sachet Filling Sealing Lotion Coffee Paste Maple Syrup Premade Pouch Packing Machine Packed By Wooden Box
Delivery Time 15 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 50 Set/Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Type Bag Forming Machine Packaging Material Plastic, Paper
Max Speed 30pcs/min Applicable Industries Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops
Voltage 380V Dimension(L*W*H) 18800*2300*2200mm
Warranty 1 Year Weight 10000 KG
Key Selling Points Automatic
Highlight

automated liquid bag making machine

,

automated doy pack filling machine

,

30pcs/min doy pack filling machine
Leave a Message
Product Description



  With High Speed Automatic Liquid Bag Packing Machine For Coffee Juice Wine Liquid Bag In Box Juice





Specification :





Function

4-side sealing bag in box making

Uncoiler number

2pc or 4pc or 6pcs

Pouch

Width=600mm ;Length =640mm*N

Max Material Roll Dimension

￠700*600mm

Dimension

N=1,2,3,4,5,6(Multiple times feeding)

(diameter * width)

Positioning accuracy

≤±0.3mm

Numbers of Hot & Cooling Knives

28units

Temperature Control line

20 lines ； 3 sets of independent temperature control modules

Temperature

room temperature ∽ 400℃

Total Power

40KW

Dimension

18800*2300*2200mm (L XW XH)











Product Description:

High Speed Automated Liquid Bag Making Machine For Coffee Juice 30pcs/Min 0







Equipment configuratiopn and related parameters:

1.Unwinding devices

2.Discharging tension

3.Deviation correction devices

4.Opposite-side pieces in upper and lower

5.longitudinal-sealing devices

6.traverse-sealing devices

7.Film traction device

8.Main transmission devices

9.Automatic positioning devices

10.Temperature control devices

11.Cutter

12.Multiple material feeding device

13.Punching device









FQA :



What is an Automatic Liquid Bag Packing Machine?

    • An Automatic Liquid Bag Packing Machine is a type of packaging equipment designed to automatically fill and seal bags with liquid products. It is commonly used in industries such as food and beverage, pharmaceuticals, cosmetics, and chemicals.

What types of liquid products can be packaged using an Automatic Liquid Bag Packing Machine?

    • These machines can handle a wide range of liquid products, including water, juice, milk, oil, sauces, soups, detergents, shampoo, and pharmaceutical liquids, among others.

How does an Automatic Liquid Bag Packing Machine work?

  • The machine works by automatically dispensing a precise volume of liquid into preformed bags, which are then sealed to contain the product. The process typically involves steps such as bag feeding, filling, sealing, and optionally, printing expiration dates or batch codes.

What are the main components of an Automatic Liquid Bag Packing Machine?

  • The main components include:

    • Conveyor system for bag transport

    • Control panel and PLC (Programmable Logic Controller)

    • Sealing system (e.g., heat sealers or ultrasonic sealers)

    • Liquid filling system (e.g., piston fillers, gravity fillers, or peristaltic pumps)

    • Bag feeding system

What are the advantages of using an Automatic Liquid Bag Packing Machine?

  • Some advantages include:

    • Compact footprint, saving space in the production area

    • Flexibility to handle various bag sizes and liquid viscosities

    • Reduced labor costs and manual handling

    • Consistent filling accuracy and product quality

    • High efficiency and productivity

What types of bags can be used with an Automatic Liquid Bag Packing Machine?

These machines can accommodate various types of flexible bags, including pillow bags, gusseted bags, stand-up pouches, spouted pouches, and sachets, depending on the specific machine configuration.





Why choose us?

●Direct factory!

●Pouch making machine get European engineer’s praise!

●480 set machine installed!

●Highed skilled engineer ,easy operation!

●Turn-key project, remote support on line!

●Qualified machine under global safety standards to guarantee production safety and workers security.








 High Speed Automated Liquid Bag Making Machine For Coffee Juice 30pcs/Min 1
