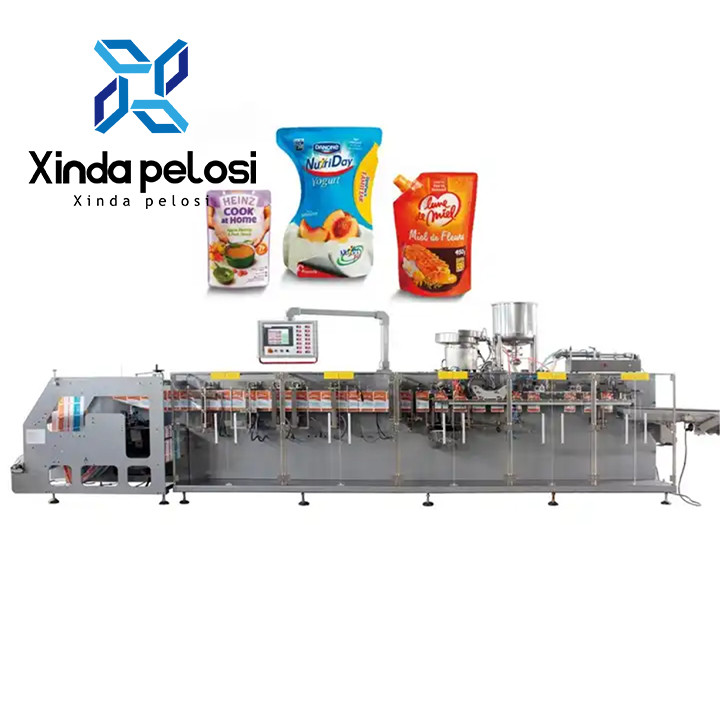

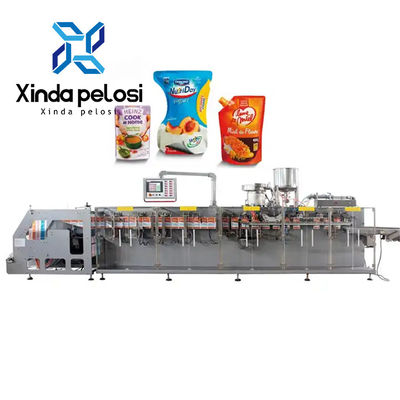

Custom Special Shape PA/PE 3 Sides Seal Liquid Bag Making Machine Automatic
| Place of Origin | Zhejiang |
|---|---|
| Brand Name | Xinda Pelosi |
| Certification | Machinery Test Report |
| Model Number | XP-Y200/250 |
| Minimum Order Quantity | 1 set |
| Price | To be negotiated |
| Packaging Details | Irregular Special Shaped Bag Liquid Sachet Filling Sealing Lotion Coffee Paste Maple Syrup Premade Pouch Packing Machine Packed By Wooden Box |
| Delivery Time | 15 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 50 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Bag Making Machine For Liquid Packaging | Packaging Material | Plastic |
|---|---|---|---|
| Max Speed | 60pcs/min | Warranty | 1 Year |
| Voltage | 380v | Dimension(L*W*H) | 110000*1750*1800mm |
| Weight | 3900 KG | Application | Food |
| Automatic Grade | Automatic | Applicable Industries | Hotels, Manufacturing Plant, Food & Beverage Factory, Home Use, Food Shop, Food & Beverage Shops |
| Highlight | 3 sides seal liquid bag making machine,special shape doy pack filling machine,special shape liquid bag making machine |
||
Product Description
Custom Special Shape PA/PE 3 Sides Seal Stand Up Spout Pouch Bag Making Machine For Liquid Packaging
Product Description :
Standard device
1.ONE SET BREATHING HOLE PUNCH WITH 6/8/10MM MOULD FOR REPLACING USE
2.ONE SET V NOTCH PUNCH
3.WASTE FILM COLLECTOR
Optional Device
Round double cutting system for cutting bag
Double unwind
Film storage system for non stop when film roll finish up
Doypack stand sealing knife
|
L( Bag Making Length) |
50-420mmX 6N (N=SKIP) |
Unwinder Rolls Film Width |
1200mm |
|
W(Bag Making Width) |
100-580mm |
Unwinder Diameter Of Roll |
800mm |
|
W1(Single Lane Width |
75-580mm |
Speed Of Bag Making |
|
|
S1( Bottom Seal Width) |
5-60mm |
3 Side Sealing Bag |
170pcs/min |
|
S2( Vertical Seal Width) |
10-60mm |
Liquid Bag |
150pcs/min |
|
Z( Zipper Width) |
13mm |
Stand Up And Liquid Bag |
150m/min |
|
ZW( Double Line Zipper Bag Central Distance) |
60mm |
Line Speed |
40m/min |
|
A(Punch Diameter) |
16mm |
Dimension Of Machine L*W*H |
14.5*2.2*2m |
|
G (Bottom Gusset Depth) |
25-60mm |
Air Compressor |
0.6mpa( 6kgf/ |
The features of a Bag Making Machine for Liquid Packaging may include:
Versatility: These machines are versatile and can produce various types of bags suitable for liquid packaging, such as stand-up pouches, spouted pouches, sachets, and pillow bags.
Precise Bag Making: They offer precise bag making capabilities, ensuring consistent quality and dimensions for each bag produced.
High-Speed Operation: Many bag making machines for liquid packaging are designed for high-speed operation, allowing for increased productivity and throughput.
Adjustable Parameters: Operators can adjust parameters such as bag length, width, and sealing temperature to accommodate different packaging requirements.
Integrated Filling System: Some machines may come with an integrated liquid filling system, allowing for seamless integration of bag making and filling processes.
Sealing Options: These machines offer various sealing options, including heat sealing, ultrasonic sealing, and hot air sealing, to ensure secure and leak-proof seals for liquid products.
Ease of Operation: They are designed for user-friendly operation, with intuitive controls and interfaces that facilitate setup and adjustment.
Minimal Downtime: These machines are built for reliability and durability, minimizing downtime and maintenance requirements to maximize production efficiency.
Compact Design: Many bag making machines for liquid packaging feature a compact design to save space in the production area.
Safety Features: They are equipped with safety features such as emergency stop buttons, safety guards, and interlock systems to ensure operator safety during operation.
Compatibility with Packaging Materials: These machines are compatible with a wide range of packaging materials suitable for liquid products, including laminated films, aluminum foil, and other barrier materials.
Customization Options: Manufacturers may offer customization options to tailor the machine to specific packaging requirements, such as additional features for printing expiration dates or batch codes.
FQA:
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Guangzhou, Guangdong Province, China. All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines.
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...
5) What certificate of machine do you have?
More than 50 pieces Patent of machine.
6) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
7) How many workers of your company?
More than 150 workers.
