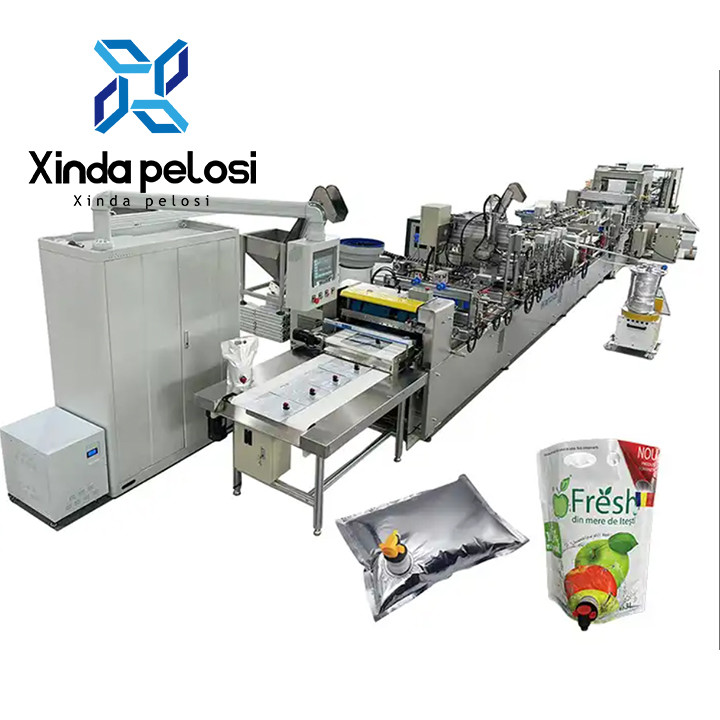

High Speed Plastic Drinking Filling Liquid Concentrate Bag,Liquid Plastic Bag In Box Making Machine

Specification :

Equipment configuration and related parameters:

1.Feeding device
Structure Form: Horizontal station
Drive: Servo motor + turbine gearbox + roller drive
Loading shaft: Air Expanding shaft
Feeding form: Manual putting
2.Longitudinal sealing device
Structure: Longitudinal arrangement , hot pressing
Drive: air cylinder
Quantity: 3 groups
Length: 1050mm heat sealing
3.Slide cutter
Structure: servo slide cutter device,

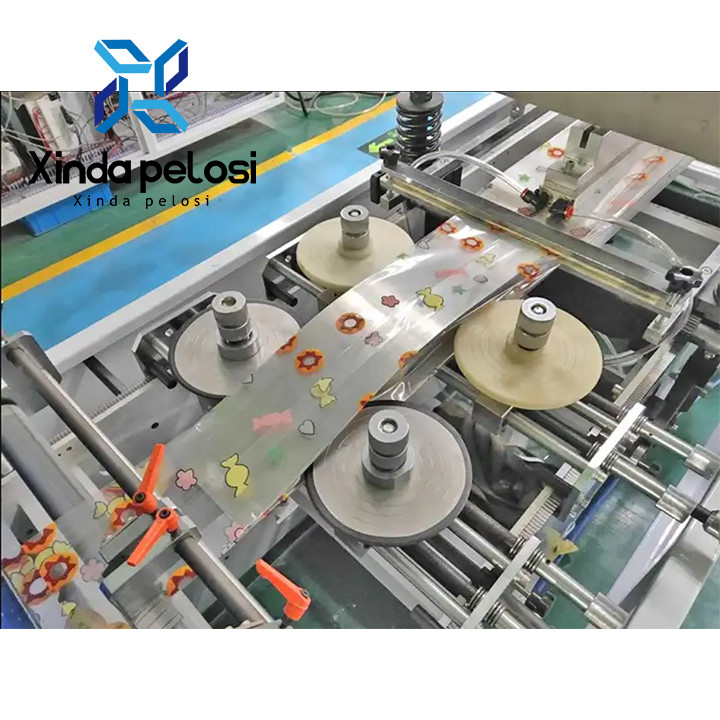

4.Film traction device
Structure: Rubber roller press type friction type
Drive: Panasonic servo system
Transmission: timing belt and timing pulley 1:5 reduction ratio
Traction: two groups upper and lower rubber roller press friction traction, intermittent motion
Control form: PLC centralized control
5.Multiple delivery devices
Structure: air Cylinder fixed action
Control form: PLC centralized control
Drive: DC24V drive solenoid valve with short circuit protection
Multiple times: 2-8 multiple delivery,set on the touch screen
6.Horizontal sealing device
Structure: Horizontal arrangement , hot sealing pressing Drive: air cylinder Quantity: 1 group Length:1680mm

Xinda Pelosi always be your best business

Offer bag making machines with the best quality and solutions.

1. Designing upon customer's project requirements.

2. Complete solutions from A to Z depending on your bag making machine.

3. Drawing of machines and layout.

4. Machine proceeds to manufacture.

Professional and dedicated after-sales service.

1. Pre-shipment testing

2. Delivery to customer factory.

3. Phone services for the consumers’ requirements on assembling products;

4. The video instructing the consumers on how to get the heaters to work or other problems.

FQA :

1.What is a Liquid Plastic Bag-in-Box Making Machine?

• A Liquid Plastic Bag-in-Box Making Machine is a specialized packaging equipment designed to produce bag-in-box packaging solutions for liquid products. These machines are commonly used in industries such as food and beverage, cosmetics, chemicals, and pharmaceuticals.

2.What is bag-in-box packaging?

• Bag-in-box packaging consists of a flexible plastic bag (inner bag) housed within a rigid outer box or container. The liquid product is filled into the inner bag, which is then inserted into the outer box. This packaging format is designed to provide convenience, ease of dispensing, and extended shelf life for liquid products.

3.What types of liquid products can be packaged using a Liquid Plastic Bag-in-Box Making Machine?

• These machines are suitable for packaging a wide range of liquid products, including beverages (such as juice, wine, and syrup), dairy products (such as milk and yogurt), sauces, edible oils, cleaning detergents, personal care products, and industrial liquids.

4.How does a Liquid Plastic Bag-in-Box Making Machine work?

• The machine works by automatically forming, filling, and sealing the plastic bags before inserting them into the outer boxes. The process typically involves feeding rolls of plastic film, forming the bags, filling them with the liquid product, sealing the bags, and placing them into the boxes.

5.What are the main components of a Liquid Plastic Bag-in-Box Making Machine?

• The main components include:

  • Conveyor system for product transfer

  • Control panel and PLC (Programmable Logic Controller)

  • Sealing and closure system for the outer boxes

  • Box forming and feeding mechanism

  • Liquid filling system (such as a gravity filler or volumetric filler)

  • Bag forming and sealing station

6.What are the advantages of using a Liquid Plastic Bag-in-Box Making Machine?

• Advantages include:

  • Suitable for both small-scale and large-scale production operations

  • Customizable packaging sizes and designs

  • Convenient dispensing and portion control for end-users

  • Reduced packaging material and transportation costs compared to traditional rigid packaging

  • Extended shelf life for liquid products

7.What types of bag-in-box configurations can be produced with these machines?

• Liquid Plastic Bag-in-Box Making Machines can produce various bag-in-box configurations, including single-layer bags, multi-layer bags (for barrier protection), different bag sizes, and box shapes (such as cuboid or rectangular).

8.Can these machines accommodate different types of plastic films?

• Yes, these machines can typically accommodate various types of plastic films, including polyethylene (PE), polypropylene (PP), and ethylene vinyl alcohol (EVOH) films, depending on the specific requirements of the liquid product and desired barrier properties.

9.Are Liquid Plastic Bag-in-Box Making Machines suitable for food-grade packaging?

• Yes, many Liquid Plastic Bag-in-Box Making Machines are designed with food-grade materials and comply with food safety regulations, making them suitable for packaging food and beverage products.

10.Where can I purchase a Liquid Plastic Bag-in-Box Making Machine?

• Liquid Plastic Bag-in-Box Making Machines are available from various manufacturers, distributors, and suppliers specializing in packaging equipment. It's essential to choose a reputable supplier and ensure the machine meets your specific needs and requirements.
