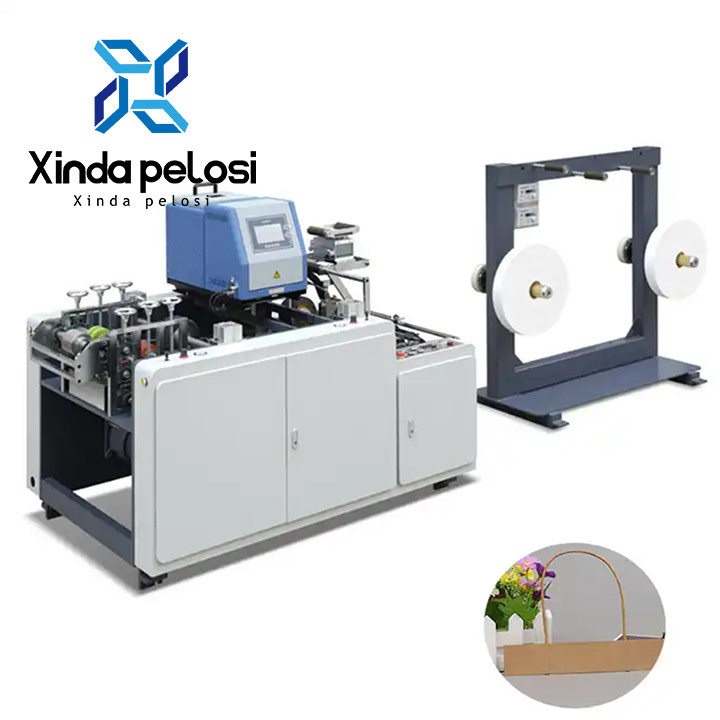

Fast Speed 7.8KW Rope Paper Bag Handle Making Machine 380Volt

Place of Origin Zhejiang
Brand Name Xinda Pelosi
Certification Machinery Test Report
Model Number XP-BS200
Minimum Order Quantity 1 set
Price To be negotiated
Packaging Details Wooden cases film
Delivery Time 20days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 30 Set/Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Paper Bag Handle Making Machine Bag Type Shopping Bag
Material Paper Speed 180 Pairs/minute
Application Packaging Industry Voltage 380V
Dimension(L*W*H) 4000*1300*1500mm Applicable Industries Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company, Other, Other, Bag Ribbon Twisted Paper Handle Making Machine
Weight 1500 KG Max Speed 10000pairs/hour, Bag Ribbon Twisted Paper Handle Making Machine
Highlight

paper bag handle making machine 380volt

,

7.8kw paper bag handle making machine

,

7.8kw paper bag with handle making machine

Leave a Message
Product Description



Manufacturing Paper Bag Handle Making Machine, Rope Paper Bag Gluer Fixing Machine With Rope Handle







Product detail:

This bag with ribbon twisted paper handle machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.





This  Paper Handle Making Machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with flat rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has

automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of user





Application:

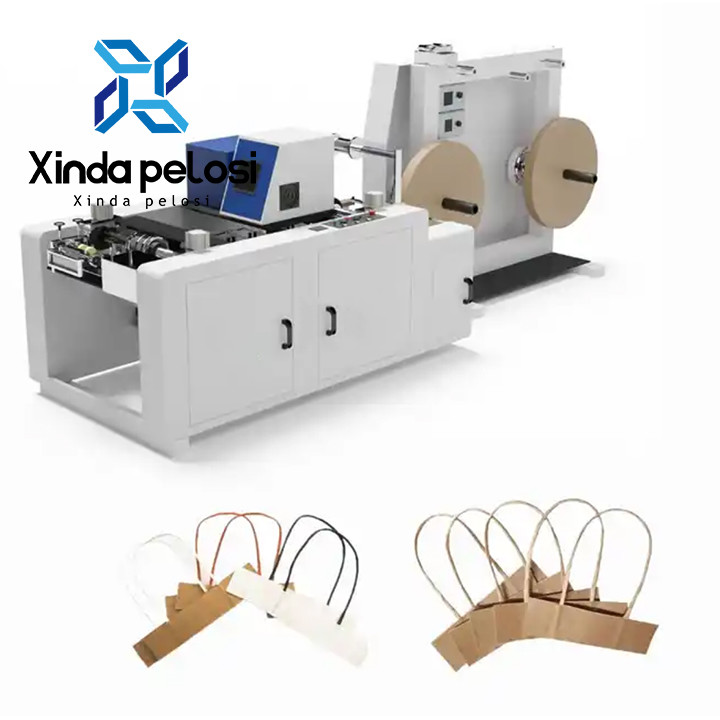

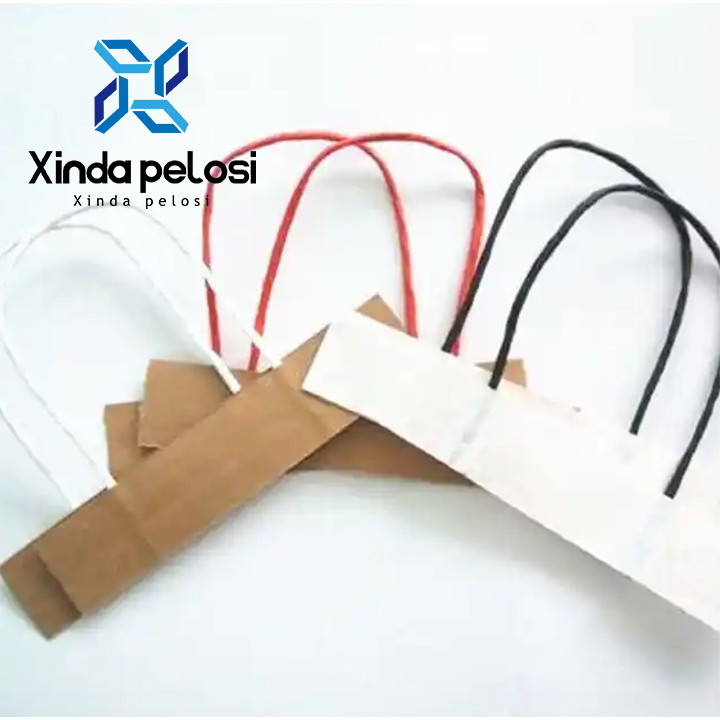

These two machines mainly produce round rope and flat rope handles for paper bags, and are an important part of paper bag production. The machine has powerful functions, high quality and high production efficiency. It is your best choice.







Specification :



Machine Model

XDP

Paper Roll Core Diameter

76 mm(3'')

Max. Paper Roll Diameter

1000mm

Production Speed

10000pairs/hour

Power Requirements

380V

Total Power

7.8KW

Total Weight

Approx.1500kg

Overall Dimension

L4000*W1300*H1500mm

Paper Length(A)

152/190mm(Optional)

Paper Rope Handle Spacing(B)

75/95mm(Optional)

Paper Width(C)

30/40mm

Paper Rope Height(C1)

100mm

Paper Roll Diameter

3.0-4mm

Glue Type

Hot-melt glue





Fast Speed 7.8KW Rope Paper Bag Handle Making Machine 380Volt 0





Machine Model XDP
Handle Spacing 108mm
Paper Rope width 12mm/15mm
Paper Rope Height 10cm
Paper Width 40mm
Paper Length 152/190mm
Paper Rope Length 352mm
Paper Gram Weight 100-120g/㎡
Production Speed 6000pairs/h
Power Requirements 380V
Total Power 10KW
Total weight Appr.4000kg
Overall Dimension L5000*W1500*H1500mm
Glue Type Hot-melt glue

Fast Speed 7.8KW Rope Paper Bag Handle Making Machine 380Volt 1







Product features:



1. The machine is easy to operate and can produce paper handles with high speed usually reach 180 pairs per minute.

2. We design and offer the optional auto-production line, which can automatic gluing replace the human gluing procedure so that help to reduce lots of labor cost. It is strongly advice the paper bag producing factory use the auto-produce line that also support customize.

3. The unit paper bag can lift the heavy things of 10 kg at most, when the tension of raw materials reaches a certain level.

4. This machine adopts Huangshang melt-glue machine of Taiwan with service points in many countries, can provide customers with the fastest service.









Packaging & Delivery



Package Detail Wooden case/manufacturing twisted rope paper bag gluer fixing machine with rope handle
Package Seize 4000*1300*1500mm
Gross Weight 2500kg







Our service:



1. Pre-Sales Service: Our service team will glad to reply inquiry and consulting support in every way as soon as we can, we can support sample testing.

2. Package & Delivery Our service team will pack goods under export standard, and prepare delivery in time as agreement.

3.Technical Support: Free Replacement of accessories within 1 year Remote assistance,24 hours online technical service Detailed operation video





FQA :



Q1: Are you manufacturer or trading company?

A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport



Q2:: Do you have relevant certificate?

A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.



Q3: Do you inspect the finished machines?

A: Yes, we have QC department, they will inspect every machine before packing and provide test video to ensure there is nothing problem of the machines.



Q4: What payment terms are accepted?

A: TT (Telegraphic Transfer), Western Union, MoneyGram,etc.



Q5 : When can the machine be shipped after order is placed?

A:It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.



Q6: How about the warranty and after-sale service?

A: Our machines have one years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available
