Laminated PE Paper Zipper Bag Making Machine CE Certification 90pcs/Min
| Place of Origin | Zhejiang |
|---|---|
| Brand Name | Xinda Pelosi |
| Certification | Machinery Test Report |
| Model Number | XPFD |
| Minimum Order Quantity | 1 set |
| Price | To be negotiated |
| Packaging Details | plastic ice cube bag making machine by flying knife system packing details:stretch film & bubble film wrapping onto wooden pallet shipment will be along with spare parts, instruction manual & components' manual. |
| Delivery Time | 70 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 300 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Bag Forming Machine | Bag Type | Zipper Bag |
|---|---|---|---|
| Max Speed | 90pcs/min | Dimension(L*W*H) | 12300*1750*1800MM |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company | Weight | 4500 KG |
| Warranty Of Core Components | 2 Years | Showroom Location | Egypt, Turkey, United States, France, Viet Nam, Brazil, Peru, Indonesia, India, Spain, Kenya, South Korea, Chile, Colombia, Sri Lanka, South Africa, Ukraine, Nigeria, Uzbekistan, Japan, Australia |
| Certification | CE | Key Selling Points | Automatic |
| Highlight | zipper bag making machine ce,pe zipper bag machine,pe zipper bag making machine |
||
Product Description

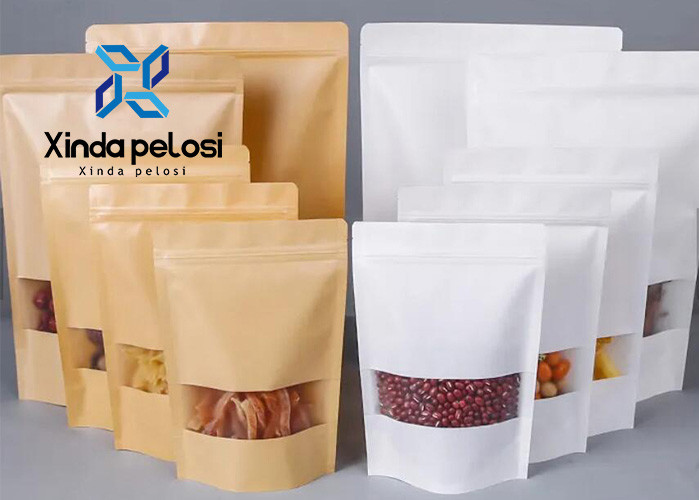

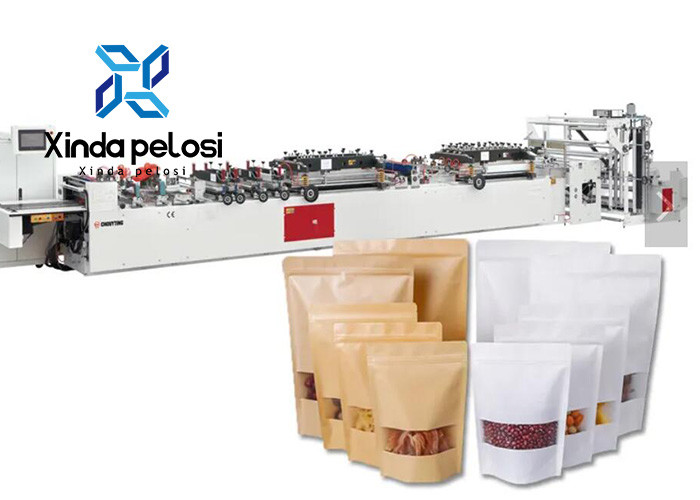

Aminated PE Paper Pouch With Window Stand Up Doypack Zipper Bag Making Machine
Specification :
Technical Parameter
| Model | CWZD-400C+FD | CWZD-500C+FD | CWZD-600C+FD |
| Width of unwinding | 800mm | 1000mm | 1200mm |
| Punch-making Length | 70-380mm*N(N≤6) | 70-380mm*N(N≤6) | 70-380mm*N(N≤6) |
| Punch-making Width | 70-380mm | 70-480mm | 70-580mm |
| Speed of bag-making | 40-150pcs/min | 40-150pcs/min | 40-150pcs/min |
| Set film dragging speed | 35M/min | 35M/min | 30M/min |
| Total Power | 38KW | 43KW | 48KW |
| Weight of machine | 3900kg | 4100kg | 4400kg |
| Machine mimension(L*W*H) | 12300*1750*1800mm | 12300*1950*1900 |
12300*2050*2000mm
|
Brief Introduction
Newly design for producing America laminated bag(single sheet folded stand up pouch and zipper bag),also can produce pet food bag popular from America.
Main Features :
1) Folding ,punch,bottom gusset and sealing automatic design.
2) Newly design feeding structure,high speed feeding no shake.
3) Special design bottom gusset device,easily to operate.
4) Double layers unwinding design,suitable for multi-function laminated bag.
5) Newly design zipper and stand up device.
6) Bottom gusset stand up continuous punch device.
Optional
1.Air cylinder automatic loading device
2.Handle hole puncher
Details :

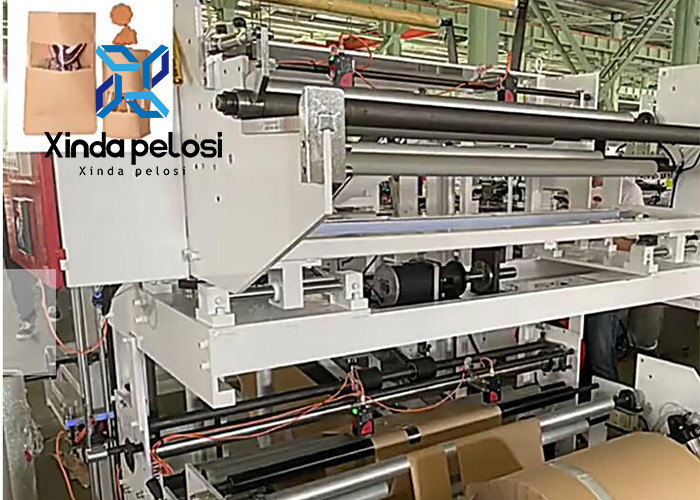

Unwinding device
1.With automatic tension monitor.
2.Equipped with plug type and pneumatic locking device.
Round bottom gusset device
The single film of stand up bag is folden by the device,the bottom not be cutted.
Third film inserted stand up device
This device is horizontal expected level with photoelectric tracking with centralized control of the host computer with the computer on pneumatic control.
Zipper ultrasonic device
1.The zipper ultrasonic device make the zipper seal much more stronger with a independent controller.
2.Zipper flattening adopt 2 groups heating.
Vertical sealing device
1.Vertical-sealing for zipper adopts 1 group for heating fluctuation.
2.Vertical-sealing for side sealing adopt 5groups for heating fluctuation,cooling fluctuation from up and down.
Bottom sealing device
Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.
Automatic Conveyor Belt
1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model).
2.When the bag reach to a certainty quantity, conveyor belt will move automatically, and continue producing.
Pneumatic punch before use
1, before the use of the punching machine, be sure to check whether there is residue in the punch part, especially the knife edge and the lower die part, do not let the debris attached to the punch and the lower die.
2, after the inspection, to the punch to add an appropriate amount of lubricating oil (that is, the punch and guide sleeve contact part), pay attention to the edge of the oil with cloth wipe clean, so as not to residue attached to the knife edge.
3, it is recommended to use lubricating oil: pure oil or butter (mold precision is high enough, the priority is to use oil, butter is the choice to make up for the low accuracy)
Pneumatic punching machine in use
1. When the punching machine continues to work, it is necessary to add lubricating oil once or replace the new oil once to keep the punch and guide sleeve lubricated.
2, when using, it is necessary to clean up the residue of the punching machine in time, especially to observe that there is no material residue under the mold, and then start the machine after cleaning.
3, when using, pay attention to whether the punching machine is loose or abnormal sound phenomenon (such as impact mold), such as abnormal, it is recommended to stop in time for processing.
4, When the position of the hole is found to be offset, you can not use the machine to beat, can not force the hammer.
After the pneumatic punching machine is used
1, after use, first wipe the surface of the punching machine, especially wipe the die parts below the punch.
2, add lubricating oil to the punch and the lower die part, press the punch to the lowest position, so as to better protect the knife edge and the lower die from damage.
FQA :
A) Are you a manufacturer or trading company?
We are manufacturer, with own employees and factory
B)How long has your factory been in this filed?
Since 2003 up to now. In China, as one of earliest and leading technology manufacturers in courier bag making machine,we have more than 19 years professional experiences.
C) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
D) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...
E) How many years of your factory?
Our company is established since 2003.
