Automated Three Side Seal Pouch Making Machine 110pcs/Min High Speed
| Place of Origin | Zhejiang |
|---|---|
| Brand Name | Xinda Pelosi |
| Certification | Machinery Test Report |
| Model Number | XPFD |
| Minimum Order Quantity | 1 set |
| Price | To be negotiated |
| Packaging Details | plastic ice cube bag making machine by flying knife system packing details:stretch film & bubble film wrapping onto wooden pallet shipment will be along with spare parts, instruction manual & components' manual. |
| Delivery Time | 70 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 300 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Zip Lock Bag Making Machine | Bag Type | Zipper Bag |
|---|---|---|---|
| Max Speed | 110pcs/min | Dimension(L*W*H) | 3.3mX1.1mx1.5m |
| Applied Material | Plastic Pe | Weight | 800 KG |
| Warranty Of Core Components | 1 Years | Applicable Industries | Garment Shops, Manufacturing Plant, Machinery Repair Shops |
| Voltage | 220V/50HZ | Key Selling Points | Automatic |
| Highlight | automated three side seal pouch making machine,three side seal pouch making machine 110pcs/min,automated 3 side seal pouch making machine |
||
Product Description

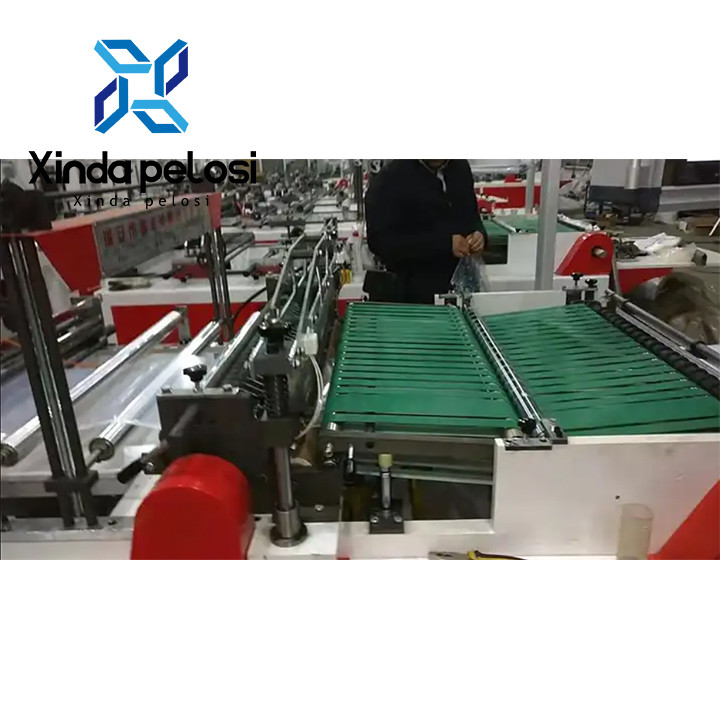

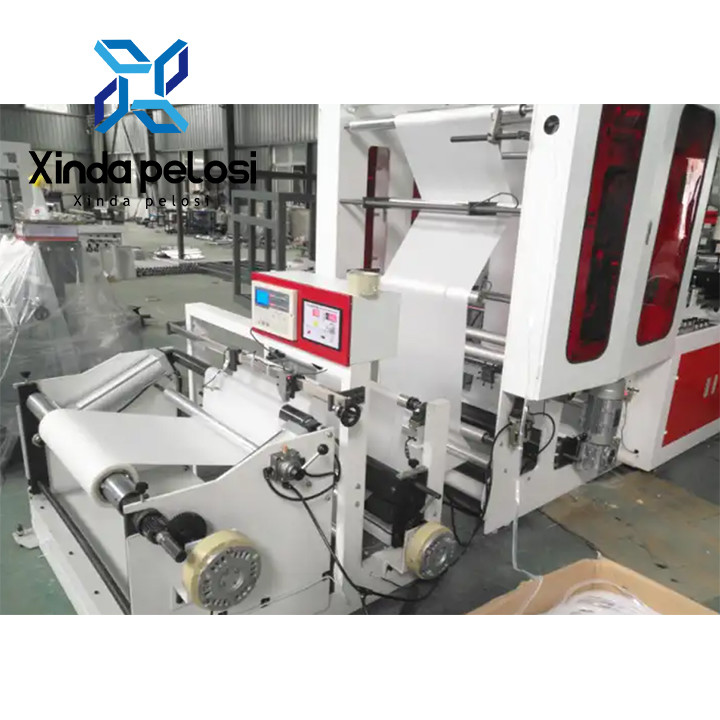

Full Automatic Three Side Seal PE Zip Lock Bag Making Machine For Garment Shops, Manufacturing Plant Etc
Functions and Features:
This is an automatic machine converts either a Lay flat sheet or a tubular roll of PE or PP material into a side seal bag and automatically attaches and seals a zipper with ultrasonic sealing inline on the machine making a Zipper bag. Zipper profile are fed in and attached by continuous sealing units. Customized sealing blades based on profile styles.The machine is capable of running at 100 pcs of bags /minute.
Automatically zipper slider attaching can be added as optional.
It’s user friendly ergonomic design, rigid construction with resistant to vibration
Recipe and production control system with special PLC system.
Product Specifications:
Model | OR-A900 |
Production Speed | 60-135PCS/min |
Bag-making width | 100-750mm |
Bag-making Length | 50-800mm |
Thickness | 0.03-0.2mm |
The speed of slider mounting | 80-140pcs/min |
Power Supply | 220V/380V |
Total Power | 8.5KW |
Overall Dimension(L*W*H) | 7500*1500*1900 |
Application Fields:
Side sealing bag with zipper and slider attachments are widely used in garment, stationery packaging.
Description:
This machine is suitable for LDPE and non-woven fabrics. The machine adopts automatic servo motor and computer drive to control the length, easy to operate, firm sealing and beautiful quality. The production process includes whole roll, triangle folding, automatic edge alignment, edge cutting, clamping chain, laminating, automatic feeding and pulling head, printing electric eye, punching, ultrasonic flattening, thermal cutting, automatic counting, and PLC control system is used in the whole process.
FQA :
1.What is a zip lock bag making machine?
A zip lock bag making machine is specialized equipment used to manufacture zip lock bags, also known as zipper bags or resealable bags, which feature a reclosable seal for easy opening and closing.
2.How does a zip lock bag making machine work?
The machine operates by processing rolls of plastic film, cutting, sealing, and forming them into bags with zip lock closures. It involves precise mechanisms for zipper attachment, cutting, sealing, bag forming, and optionally printing or handle attachment.
3.What types of materials can be used with a zip lock bag making machine?
Zip lock bag making machines can handle various types of plastic films, including polyethylene (PE) and polypropylene (PP), commonly used for packaging applications.
4.What are the key features of a zip lock bag making machine?
Key features include zipper attachment mechanisms, cutting units, sealing devices, bag forming mechanisms, optional printing units, handle attachment mechanisms, control systems, safety features, and quality control systems.
5.What are the benefits of using a zip lock bag making machine?
Benefits include increased production efficiency, reduced labor costs, consistency in bag quality and dimensions, customization options for printing and handle attachment, and the ability to produce bags with convenient zip lock closures.
6.Is training required to operate a zip lock bag making machine?
Yes, operators typically require training on machine operation, maintenance procedures, troubleshooting techniques, and safety protocols to ensure safe and efficient operation.
7.What maintenance is needed for a zip lock bag making machine?
Regular maintenance, including cleaning, lubrication, inspection of machine components, and replacement of worn parts, is necessary to ensure smooth operation and prevent downtime.
8.Can zip lock bag making machines be customized to meet specific requirements?
Yes, many zip lock bag making machines offer customization options, such as adjustable settings for bag dimensions, material types, printing options, and handle attachment features, to meet the specific needs of customers and applications.
