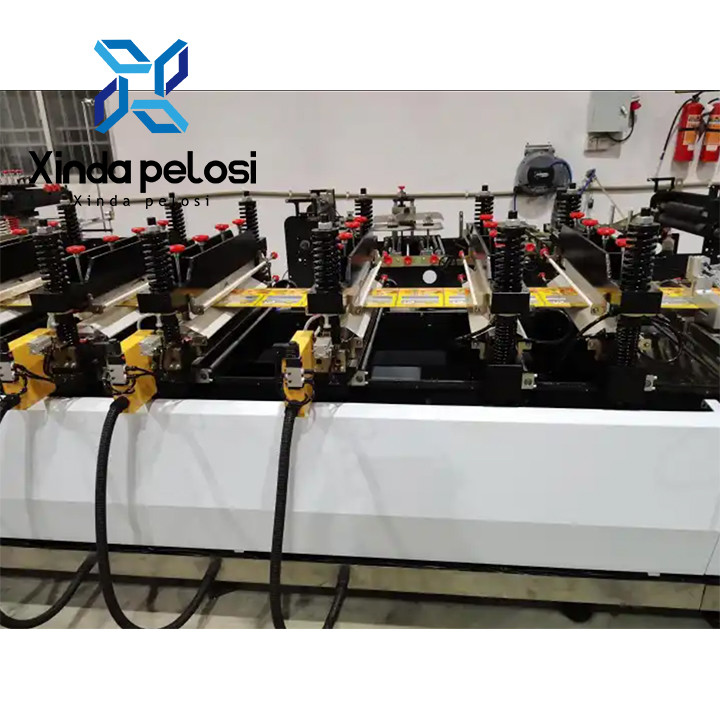

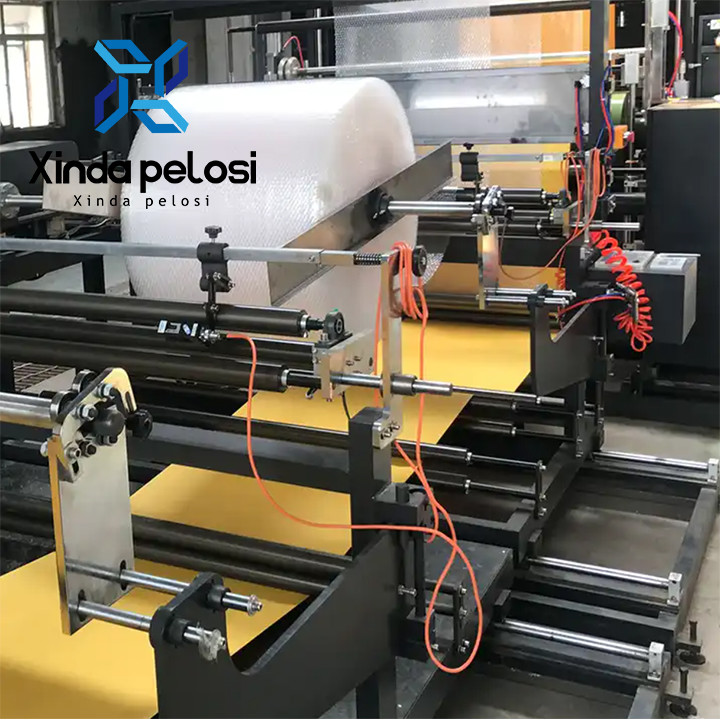

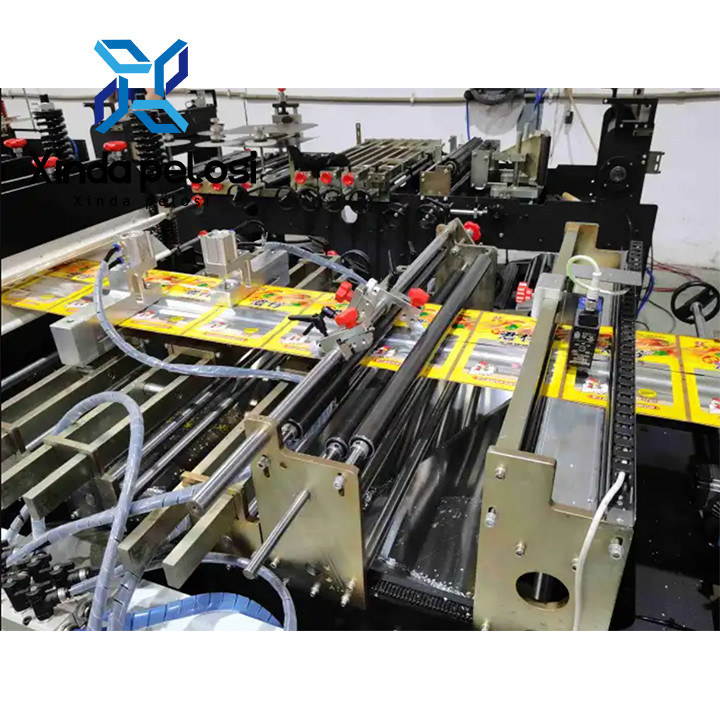

Automatically Stand Up Zipper Bag Making Machine 35kw High Capacity
| Place of Origin | Zhejiang |
|---|---|
| Brand Name | Xinda Pelosi |
| Certification | Machinery Test Report |
| Model Number | XPFD |
| Minimum Order Quantity | 1 set |
| Price | To be negotiated |
| Packaging Details | plastic ice cube bag making machine by flying knife system packing details:stretch film & bubble film wrapping onto wooden pallet shipment will be along with spare parts, instruction manual & components' manual. |
| Delivery Time | 70 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 300 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Zipper Packing Machine | Bag Type | Zipper Bag |
|---|---|---|---|
| Speed | 80-180 Bags/min | Dimension(L*W*H) | 14500*1750*1900 |
| Capacity | 120pcs/min | Weight | 8000 KG |
| Warranty Of Core Components | 1 Years | Segment Shape | Three Side Seal Bag,stand Up Bag,stand Up Zipper Bag,box Bag |
| Total Power | 35kw | Key Selling Points | Automatic |
| Highlight | zipper bag making machine 35kw,automatically zipper bag machine,automatically zipper bag making machine |
||
Product Description
Automatic Three Side Seal Bag,Stand Up Bag,Stand Up Zipper Bag,Box Bag Zipper Packing Machine
Product Specifications:
|
Model |
WSD-600C |
|
Production efficiency |
120 times/min (sealing 100-200mm on three sides) |
|
Plastic bags tpes |
three-side sealing bag |
|
double stand-up bag (add bottom and double stand) |
|
|
bottom insert stand up bag |
|
|
double zipper bag |
|
|
Net weight of the whole machine |
about 6500kg |
Application Fields:
Side sealing bag with zipper and slider attachments are widely used in garment, stationery packaging.
Product parameter table:
|
Parameter |
Description |
|
Machine Type |
Type of zipper packing machine (vertical, horizontal) |
|
Bag Type |
Zip lock bag, resealable bag, pouch, etc. |
|
Bag Size Range |
Minimum and maximum dimensions of bags produced |
|
Production Capacity |
Number of bags produced per minute or hour |
|
Material Type |
Types of materials compatible with the machine (e.g., PE, PP) |
|
Material Thickness |
Thickness range of compatible materials |
|
Zipper Type |
Type of zipper closure (e.g., standard zipper, slider zipper) |
|
Filling Method |
Method used for filling bags (e.g., auger filler, weigh filler) |
|
Sealing Method |
Method used for sealing bags (e.g., heat sealing, ultrasonic sealing) |
|
Printing Option |
Availability of printing unit for adding graphics, text, or logos |
|
Control System |
Type of control system (e.g., PLC, touchscreen interface) |
|
Power Supply |
Voltage and frequency required for operation |
|
Machine Dimensions (LxWxH) |
Physical dimensions of the machine |
|
Machine Weight |
Weight of the machine |
|
Optional Features |
Additional features such as gas flushing, date coding |
|
Safety Features |
Safety mechanisms included in the machine |
|
Warranty |
Length and coverage of manufacturer's warranty |
Product features:
1. This small plastic making bag machine has excellent processing and assembly, beautiful appearance and reasonable structure.
2. This small plastic making bag machine runs smoothly with low noise, convenient zipper adjustment, accurate punching of upright bags, and fast operation speed.
3. Adopting PLC three servo traction control and temperature computer centralized control, reducing power consumption.
4. The main discharge and double vertical insertion bottom discharge adopt constant tension control, ensuring the smoothness of material pulling and the accuracy of vertical punching control.
5. The middle tension floating roller adopts a dynamic compensation mode, which minimizes the fluctuation of up and down during the material pulling process, and the middle tension control is stable.
6. This zipper bag making machine has horizontal sealing and colorless upright bag with curved bottom hot knife indentation overlap and good stability.
Standard device:
1.ONE SET BREATHING HOLE PUNCH WITH 6/8/10MM MOULD FOR REPLACING USE
2.ONE SET V NOTCH PUNCH
3.WASTE FILM COLLECTOR
Optional Device
Round double cutting system for cutting bag
Double unwind
Film storage system for non stop when film roll finish up
Doypack stand sealing knife
