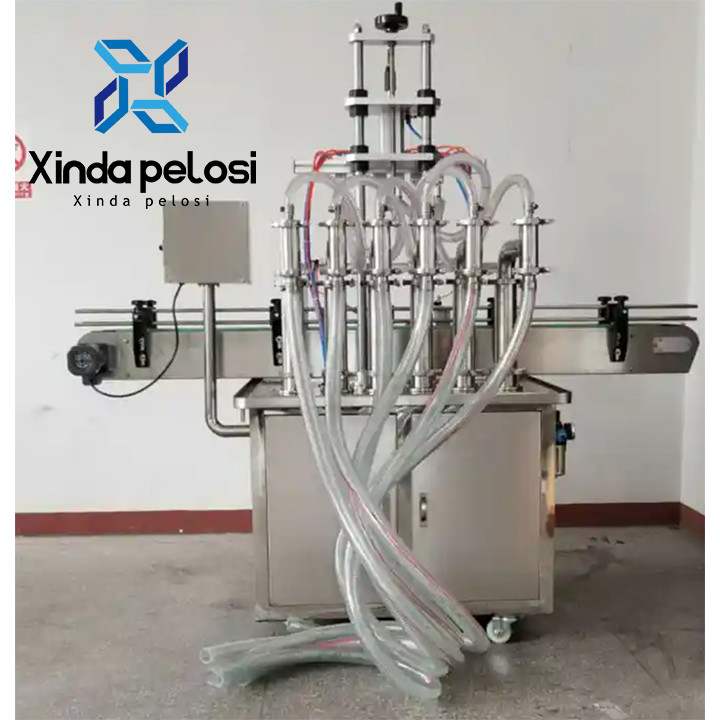

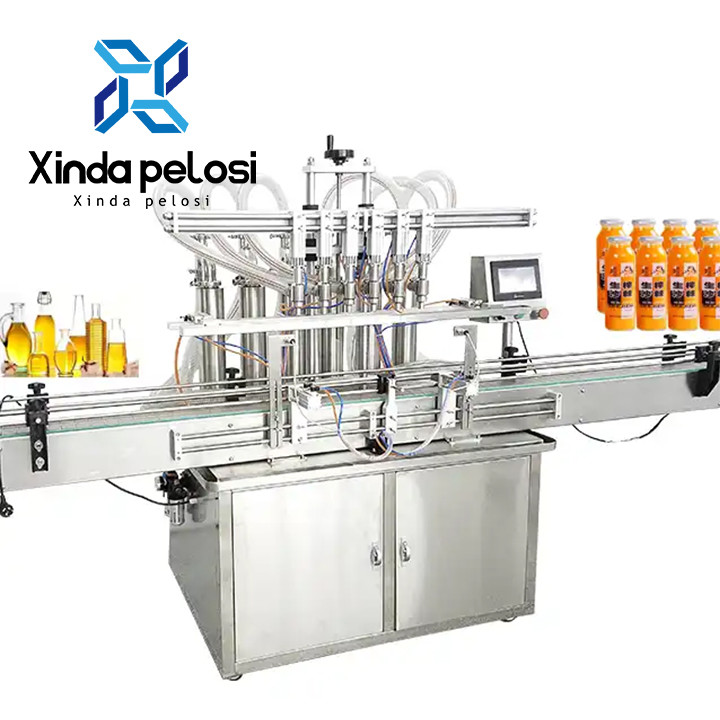

Fully Automatic Multi-Function Multi-Head Electronically Controlled Bottle Liquid Filling Machine

Specification :

Description

The filling machine adopts double-headed 304L Stainless steel piston pumps quantitative filling . It is easy to clean. It is able to wear and tear. There is have O-ring and seal gasket in the pump, so there is no impurity, and do not pollute the liquid. Besides, the filling precision of this pump is high. And touch screen controls all action.

After filling into sucked inner plug, cover, by pneumatic control, robot- hand plugger,cover. Then into capping, this capping parts use the transverse torque and automatic slipping unit. So it does not hurt the cover. The bottles don’t follow with the capping head, the turntable does not hurt the bottle, so the design protects the beautiful of the packaging material.

Feature

1) The mainframe running speed is stepless frequency conversion.

2) The product quantity can be controlled.

3) Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).

4) Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.arameters of Customized Factory filling machine:

Principle:

Liquid Delivery: The liquid to be filled is stored in a reservoir or tank connected to the filling machine. The liquid is delivered from the reservoir to the filling machine through a system of pipes or tubes, which may include pumps or gravity feed mechanisms to control the flow rate.

​

Bottle Handling: Empty bottles are fed into the filling machine via a conveyor belt or other feeding mechanism. The bottles are guided through the filling process using guides, clamps, or other holding mechanisms to ensure stability and proper positioning.

​

Filling Method: The filling method depends on the type of liquid being filled and the specific requirements of the application. Common filling methods include:

• Gravity Filling: Liquid flows into the bottles under the force of gravity, with the filling nozzles positioned above the bottles.Pressure

• Filling: Liquid is forced into the bottles using air pressure or mechanical pressure, ensuring precise control over the filling volume.

• Piston Filling: A piston or cylinder displaces the liquid into the bottles, allowing for accurate filling of both thin and viscous liquids.

• Vacuum Filling: Air is removed from the bottles before filling, creating a vacuum that draws liquid into the bottles when the filling nozzles are opened.

Volume Control: The filling machine is equipped with mechanisms to control the volume of liquid dispensed into each bottle. This may include adjustable filling nozzles, flow meters, or sensors that monitor the liquid level in the bottles.

​

Accuracy and Consistency: Filling machines are designed to ensure accuracy and consistency in the filling process, minimizing variations in the fill volume between bottles. This is achieved through precise control of the liquid flow rate, bottle positioning, and volume measurement.

​

Cleaning and Sanitization: Filling machines are designed to be easy to clean and sanitize between production runs to prevent cross-contamination and ensure product safety. This may involve features such as quick-change parts, CIP (clean-in-place) systems, and sanitary construction materials.

​

Automation and Integration: Many modern filling machines are fully automated and integrated with other packaging equipment, such as capping machines, labeling machines, and conveyor systems. This allows for seamless operation and increased efficiency in the packaging line.

​

Safety and Compliance: Filling machines are designed to meet safety standards and regulatory requirements for food, pharmaceutical, and other industries. They may incorporate safety features such as emergency stop buttons, safety guards, and compliance with hygiene standards.

FQA :

Q1. What’s your product range?
-Hot Coding Foil, Hot Stamping Foil, Hot Ink Roller, Thermal Thransfer Ribbon, Coding and Sealing Machine and packing machine

Q2. What's the information should I let you know if I want to get a quotation?
-For the hot coding foil: The width, the length, the color, the quantity and the type.
-For the hot ink roller: The outer diameter, the height, the color, the quantity and your printing temperature.
-For the coding machine: The type and the quantity.
-For the sealing machine:The type and the quantity.
-The destination port.
-The shipping term: By sea, by air or by courier.

Q3.This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
-We are alibaba legitimate certification company, and we support payment terms like L/C, Escrow,Trade Insurance to ensure yoursafety.

Q4.How to ensure that I received the machine undamaged?
-At first , our package is standard for shipping and before packing, we willconfirm product undamaged, otherwise, please contact within 2days.Because we've bought insurance for you, we or shipping company will be responsible!
.
Q5. How do you ship the products?
-By sea
-By air
-By courier, DHL, FEDEX, TNT, UPS, EMS. Ect.
